Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

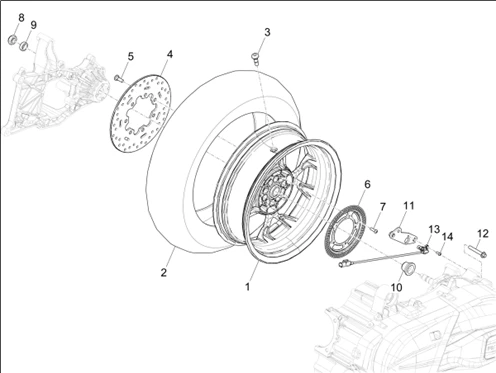

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_04.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/3/0/img/198830.jpg)
1 |
1C006133000G28 - REAR WHEEL More informationQuantity required : 1 |
||||||
1 |
1C006133 - REAR WHEEL More informationQuantity required : 1 |
||||||
|
2 |
CM319107 - REAR TYRE 140 70 14 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
3 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/7/7/img/198577.jpg)
4 |
1C006863 - BRAKE DISK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/3/8/7/img/174387.jpg)
5 |
1C005191 - CHEESE-HEADED SOCKET SCREW More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/7/8/img/198578.jpg)
6 |
1C006232 - ABS TONE RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
7 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152 More informationQuantity required : 5 |
||||||
|
8 |
1C004202 - SELF LOCKING NUT WITH STEEL INSERT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/6/img/67346.jpg)
9 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 A 500 CC -597528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/5/img/69555.jpg)
10 |
848039 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
11 |
1C006376 - ABS SENSOR BRACKET WITH IP More informationQuantity required : 1 |
||||||
|
12 |
1C006392 - FLANGED HEX SCREW M8X55 LOCT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/7/9/img/198579.jpg)
13 |
1D003828 - ABS SENSOR More informationQuantity required : 1 |
||||||
|
14 |
1C003709 - VIS More informationQuantity required : 1 |
