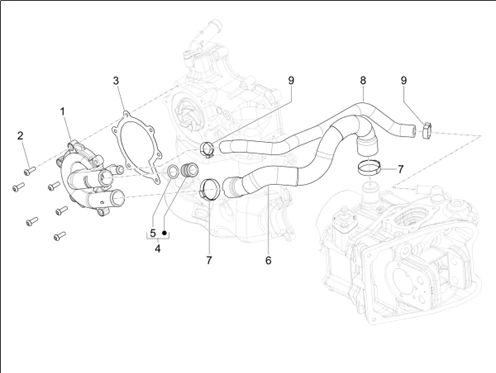

Moteur : 01.19 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/5/2/5/img/151525.jpg)
1 |
WATER PUMP COVER "PIAGGIO GENUINE PART" 500 MP3 MAXI 2018> -1A011109 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
2 |
SCREW - (5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER -B0167965 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/1/img/70711.jpg)
3 |
GASKET FOR WATER PUMP COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -879210 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/7/2/img/198772.jpg)
4 |
1A0233565 - COMPLETE CALIBRATION BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/7/3/img/198773.jpg)
5 |
1A023354 - SEAL RING (O-RING) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/7/4/img/198774.jpg)
6 |
1A021112 - WATER PUMP - CYLINDER PIPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/8/img/72878.jpg)
7 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -CM001917 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/7/5/img/198775.jpg)
8 |
1A020423 - BY-PASS WATER PIPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
9 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904 More informationQuantity required : 2 |
