Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

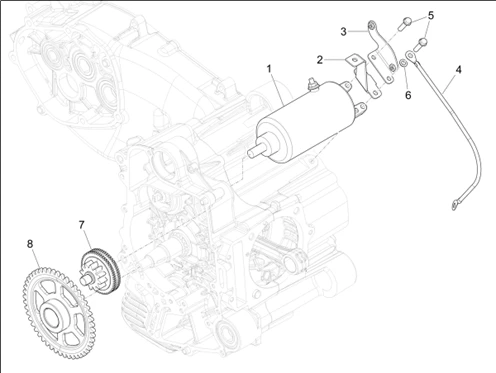

Moteur : 01.20 DÉMARRAGE - DÉMARRAGE ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.20.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/3/4/img/68634.jpg)
1 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" 400-500 MP3, BEVERLY, 400 X-EVO, 500 X10/GILERA 500 NEXUS, FUOCO/APRILIA 400-500 ATLANTIC -82699R More informationQuantity required : 1 |
||||||
2 |
1C000888 - PATTE More informationQuantity required : 1 |
||||||
|
3 |
1A014523 - TOLE More informationQuantity required : 1 |
||||||
|
4 |
584843 - CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
5 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
6 |
012533 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/3/5/img/70635.jpg)
7 |
TORQUE LIMITER FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -876835 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/6/img/68666.jpg)
8 |
ELECTRIC STARTER GEAR "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -82737R More informationQuantity required : 1 |
