Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

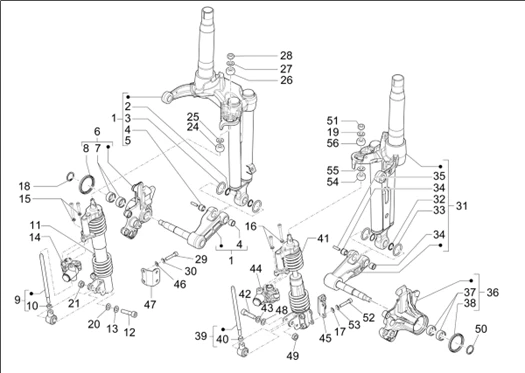

Suspensions - roues : 04.07 COMPOSANTS DE LA FOURCHE (MINGXING)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_04.07.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/5/9/img/198559.jpg)
1 |
1C0063395 - COMPLETE STEERING TUBE RIGHT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/0/7/img/65707.jpg)
2 |
GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/4/img/63834.jpg)
3 |
GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/2/6/2/img/75262.jpg)
4 |
ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/9/img/65779.jpg)
5 |
ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451 More informationQuantity required : 1 |
||||||
6 |
1C0068945 - RH CPL SHOCK ABS. AND CALIPER SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/6/1/img/198561.JPG)
7 |
1C006892 - DRAWN CUP ROLLER BEARING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/5/img/75025.jpg)
8 |
BUSHING FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177494 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/8/2/img/86982.jpg)
9 |
RIGHT/LEFT SHOCK ABSORBER PIN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649683 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
10 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/2/4/img/198824.jpg)
11 |
1C006308R - COMPLETE RIGHT FRONT SHOCK ABSORBER More informationQuantity required : 1 |
||||||
|
12 |
1B000324 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
13 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/0/5/2/img/83052.jpg)
14 |
COMPLETE RIGHT BRAKE FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -601907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
15 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
|
16 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
17 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/6/img/63816.jpg)
18 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006422 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/6/7/img/74967.jpg)
19 |
174088 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
20 |
012543 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
21 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/6/6/img/74966.jpg)
24 |
FRONT SUSPENSION ARM BUFFER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085 More informationQuantity required : 1 |
||||||
|
25 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/0/img/65770.jpg)
26 |
RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER +MAXISCOOTER -174874 More informationQuantity required : 1 |
||||||
|
27 |
174088 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/9/6/4/img/73964.jpg)
28 |
021210 - ECROU EX 319438 + S02121000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/3/img/68593.jpg)
29 |
826298 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
30 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/6/3/img/198563.jpg)
31 |
1C0063375 - COMPLETE STEERING TUBE LEFT More informationQuantity required : 1 |
||||||
|
32 |
GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219 More informationQuantity required : 2 |
||||||
|
33 |
GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731 More informationQuantity required : 2 |
||||||
|
34 |
ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513 More informationQuantity required : 2 |
||||||
|
35 |
ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451 More informationQuantity required : 1 |
||||||
|
36 |
1C0068935 - LH CPL SHOCK ABS. AND CALIPER SUPPORT More informationQuantity required : 1 |
||||||
|
37 |
1C006892 - DRAWN CUP ROLLER BEARING More informationQuantity required : 2 |
||||||
|
38 |
BUSHING FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177494 More informationQuantity required : 1 |
||||||
|
39 |
RIGHT/LEFT SHOCK ABSORBER PIN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649683 More informationQuantity required : 1 |
||||||
|
40 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/6/5/img/198565.jpg)
41 |
1C006307R - FRONT DAMPER, ASSY More informationQuantity required : 1 |
||||||
|
42 |
1B000324 - VIS More informationQuantity required : 1 |
||||||
|
43 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/0/3/7/img/83037.jpg)
44 |
COMPLETE LEFT BRAKE FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -601727 More informationQuantity required : 1 |
||||||
|
45 |
1C005110 - SUPPORT MUDGUARD BRAKET More informationQuantity required : 1 |
||||||
|
46 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
|
47 |
1C005110 - SUPPORT MUDGUARD BRAKET More informationQuantity required : 1 |
||||||
|
48 |
012543 - RONDELLE More informationQuantity required : 1 |
||||||
|
49 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
||||||
|
50 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006422 More informationQuantity required : 1 |
||||||
|
51 |
021210 - ECROU EX 319438 + S02121000 More informationQuantity required : 1 |
||||||
|
52 |
826298 - VIS More informationQuantity required : 2 |
||||||
|
53 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
|
54 |
FRONT SUSPENSION ARM BUFFER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085 More informationQuantity required : 1 |
||||||
|
55 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 1 |
||||||
|
56 |
RUBBER PAD FOR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER +MAXISCOOTER -174874 More informationQuantity required : 1 |
