Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

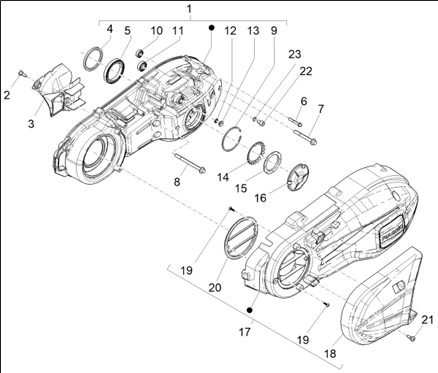

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.15.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/7/0/img/158270.jpg)
1 |
1A0135195 - COUVERCLE TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/2/0/img/70520.jpg)
3 |
874136 - DEFLECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/6/7/img/158267.jpg)
4 |
1A011140 - BAGUE ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/6/8/img/158268.jpg)
5 |
1A011333 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.jpg)
6 |
1A011120 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/6/img/72716.jpg)
7 |
B016766 - VIS M8X70 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/7/img/72717.jpg)
8 |
B016767 - VIS M8X100 More informationQuantity required : 2 |
||||||
9 |
1A011199 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
10 |
1A011436 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/7/2/img/158272.jpg)
11 |
1A014132 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/7/3/img/158273.jpg)
12 |
1A014066 - BAGUE ETANCHEITE More informationQuantity required : 1 |
||||||
|
13 |
1A014477 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
1A011200 - RONDELLE More informationQuantity required : 1 |
||||||
|
15 |
1A011201 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/0/6/img/174606.jpg)
16 |
1A016451 - PLUG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/6/8/img/198768.jpg)
17 |
1A022330 - SOUND-PROOFING COVER ASSY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/7/9/img/158279.jpg)
18 |
1A013894 - COUVERCLE RAFRR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
19 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/5/7/img/69057.jpg)
20 |
833318 - FILTRE A AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
21 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
22 |
269755 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
23 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703 More informationQuantity required : 1 |
