Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

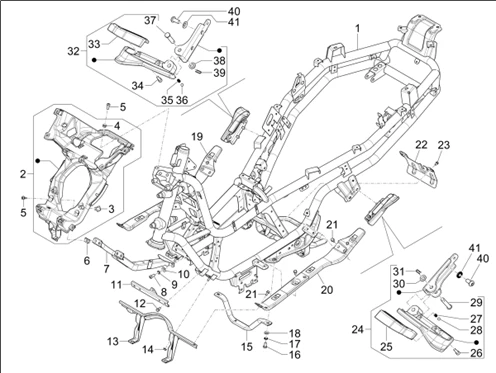

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.01.png)
1 |
1B0086535 - FRAME WITH I.P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/7/0/img/198370.jpg)
2 |
1B010193 - COMPLETE FRONT FRAME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/7/1/img/198371.jpg)
3 |
1B009932 - SPACER More informationQuantity required : 3 |
||||||
|
4 |
1B009946 - SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/2/1/6/img/174216.JPG)
5 |
1B008127 - SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
6 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -575268 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/7/3/img/198373.jpg)
7 |
1B0091235 - FRONT FRAME WITH I.P. More informationQuantity required : 1 |
||||||
|
8 |
2B002311 - VIS M8X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
9 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/7/0/img/73670.jpg)
10 |
006032 - RONDELLE S00603200 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/7/4/img/198374.jpg)
11 |
1B0096515 - UPPER CROSSBAR COOLANT WITH IP CATAPHOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
12 |
B016426 - VIS TEF M6X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/7/5/img/198375.jpg)
13 |
1B0069494 - RADIATOR SUPPORT FRAME WITH CATAPHORESI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/8/img/67348.jpg)
14 |
597565 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/7/6/img/198376.jpg)
15 |
1B009653 - CONNECTING FRAME PIPE More informationQuantity required : 1 |
||||||
|
16 |
031117 - BOULON S03111700 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
17 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/3/img/63773.jpg)
18 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/7/7/img/198377.jpg)
19 |
1B0092755 - RIGHT LEFT FOOTBOARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/7/8/img/198378.jpg)
20 |
1B0092495 - LEFT FOOTBOARD More informationQuantity required : 1 |
||||||
|
21 |
B016426 - VIS TEF M6X14 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/7/9/img/198379.jpg)
22 |
1B010343 - DIAPHRAGM PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
23 |
969296 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/5/0/img/158150.jpg)
24 |
1B00645800090 - PROTECTION DRT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/2/5/img/89625.jpg)
25 |
656993 - TAPIS REPOSE PIED More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/1/img/178661.JPG)
26 |
1C004839 - SOCKET HEAD SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/5/6/1/img/162561.jpg)
27 |
2955909 - RESSORT More informationQuantity required : 1 |
||||||
|
28 |
2955916 - BILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/2/7/8/4/img/152784.jpg)
29 |
975835 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
30 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
31 |
259933 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/1/4/9/img/158149.jpg)
32 |
1B00646000090 - PROTECTION DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/2/6/img/89626.jpg)
33 |
656994 - TAPIS REPOSE PIED More informationQuantity required : 1 |
||||||
|
34 |
1C004839 - SOCKET HEAD SCREW More informationQuantity required : 2 |
||||||
|
35 |
2955909 - RESSORT More informationQuantity required : 1 |
||||||
|
36 |
2955916 - BILLE More informationQuantity required : 1 |
||||||
|
37 |
975835 - PIVOT More informationQuantity required : 1 |
||||||
|
38 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
|
39 |
259933 - RESSORT More informationQuantity required : 1 |
||||||
|
40 |
1B008127 - SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
41 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187 More informationQuantity required : 4 |
