Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

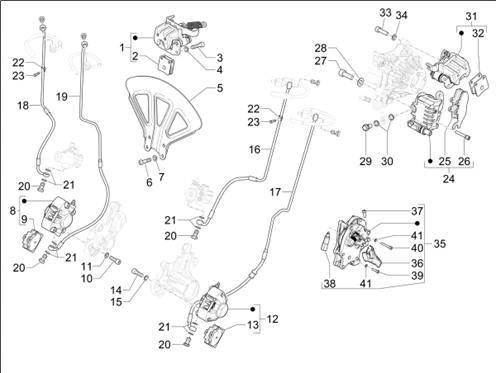

Instalation du freins - transmisisons : 05.02 TUYAUS DU FREINS - ETRIERS DE FREIN (ABS)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_05.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/8/0/img/198580.jpg)
1 |
1C006471 - MECHANICAL BRAKE CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/5/2/img/68052.jpg)
2 |
PARKING BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -648476 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
3 |
SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
4 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/2/6/img/89926.jpg)
5 |
ANTI-TILTING DISC "PIAGGIO GENUINE PART" MP3 125-250-300-400-500 - 665588 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/6/5/4/8/img/166548.jpg)
6 |
1C004053 - VIS A TETE BOMBEE TORX More informationQuantity required : 4 |
||||||
|
7 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/4/6/8/img/151468.jpg)
8 |
CM294802 - ETRIER DE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/4/2/4/img/205424.jpg)
9 |
PLAQUETTE DE FREIN AVANT ORIGINE PIAGGIO 300-350-400-500 MP3 2018> (VENDU A LA PLAQUETTE) -1C003813 More informationQuantity required : 1 |
||||||
|
9 |
PLAQUETTE DE FREIN AVANT ORIGINE PIAGGIO 300-350-400-500 MP3 2018> (VENDU A LA PLAQUETTE) -1C003813 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/0/1/7/img/174017.jpg)
10 |
271596 - VIS More informationQuantity required : 2 |
||||||
|
11 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/4/7/0/img/151470.jpg)
12 |
CM294801 - ETRIER DE FREIN More informationQuantity required : 1 |
||||||
|
13 |
PLAQUETTE DE FREIN AVANT ORIGINE PIAGGIO 300-350-400-500 MP3 2018> (VENDU A LA PLAQUETTE) -1C003813 More informationQuantity required : 1 |
||||||
|
13 |
PLAQUETTE DE FREIN AVANT ORIGINE PIAGGIO 300-350-400-500 MP3 2018> (VENDU A LA PLAQUETTE) -1C003813 More informationQuantity required : 1 |
||||||
|
14 |
271596 - VIS More informationQuantity required : 2 |
||||||
|
15 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
16 |
1C004807 - BRAKE HOSE LEFT SHOCK ABSORBER CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/6/7/img/174667.jpg)
17 |
1C005539 - BRAKE HOSE RIGHT (LINK -BRAKE CALIPER) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/8/1/img/198581.jpg)
18 |
1C004808 - PIPE FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/6/5/img/174665.jpg)
19 |
1C005540 - BRAKE HOSE LEFT (LINK-BRAKE CALIPER) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/5/img/127555.jpg)
20 |
1C002059R - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
21 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/6/4/img/86964.jpg)
22 |
649502 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
23 |
B016777 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/5/7/6/img/95576.jpg)
24 |
REAR BRAKE CALIPER "PIAGGIO GENUINE PART" 300-350 MP3, 125-350-500 X10 -CM068318 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/8/8/img/68388.jpg)
25 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125-350-500 X10 REAR, 125-300-350 BEVERLY REAR, 125-300 MP3 YOURBAN REAR (PAIR) -665842 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/9/6/img/68396.jpg)
26 |
BRAKE CALIPER SUPPORT PIN "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -666139 More informationQuantity required : 2 |
||||||
|
27 |
1C005334 - SCREW (CYLINDER HEAD) More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
28 |
WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535 More informationQuantity required : 2 |
||||||
|
29 |
1C002059R - VIS More informationQuantity required : 1 |
||||||
|
30 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/9/1/img/95791.jpg)
31 |
PARKING BRAKE CALIPER "PIAGGIO GENUINE PART" 125-250-300 MP3, 350 X10 -CM084605 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/0/4/img/90404.jpg)
32 |
PARKING BRAKE PADS - "PIAGGIO GENUINE PART" 350 MP3, X10, 500 X10 -668541 More informationQuantity required : 1 |
||||||
|
33 |
1C004169 - SCREW More informationQuantity required : 2 |
||||||
|
34 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
|
35 |
1C0066155 - COMPLETE HAND BRAKE LEVER GROUP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/8/3/img/198583.jpg)
36 |
1C006622 - HAND BRAKE LEVER HANDLE More informationQuantity required : 1 |
||||||
|
37 |
1C006669 - BHHS SCREW M5X16 WITH UNSCREWING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/6/img/67286.jpg)
38 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS -583575 More informationQuantity required : 1 |
||||||
|
39 |
1C006671 - CHHS SCREW M4X16 UNI5931 WITH UNSCREWIN More informationQuantity required : 1 |
||||||
|
40 |
1C006670 - CHHS SCREW M4X30 UNI5931 WITH UNSCREWIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
41 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 2 |
