Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

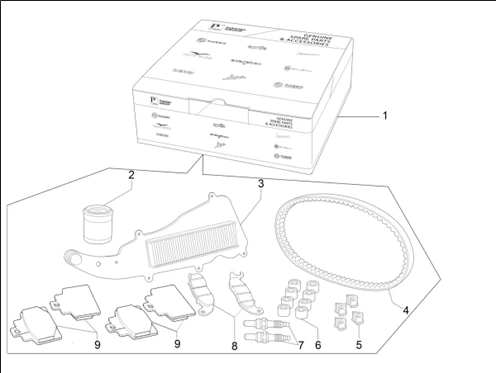

Maintenance : 07.01 COMPLETE WEAR AND MAINTENANCE KIT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_07.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/4/7/img/198847.jpg)
1 |
1R000550 - MAINTENANCE KIT MP3 500 E5 RST MY 2022 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/9/img/68859.jpg)
2 |
OIL FILTER "PIAGGIO GENUINE PART" 400-500 MP3, X8, X9, X10, BEVERLY/GILERA 500 NEXUS, FUOCO, GP800/APRILIA SCARABEO, ATLANTIC, 1200 CAPONORD, DORSODURO, SHIVER, SRV 850 -82960R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/8/9/img/198789.jpg)
3 |
1A023582 - AIR BOX FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/6/7/img/198767.jpg)
4 |
1A020495 - DOUBLE COG VARIABLE SPEED BELT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/0/0/img/174600.jpg)
5 |
1A017548 - SLIDING PAD More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/5/9/9/img/174599.jpg)
6 |
1A017458 - ROLLER More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/4/3/3/img/157433.jpg)
7 |
SPARK PLUG NGK MR7BI-8 "PIAGGIO GENUINE PART" 300 MP3 HPE 2019>, 500 MP3 MAXI 2018>, 300 VESPA GTS HPE 2018> -1A013926 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/8/8/img/68388.jpg)
8 |
BRAKE PADS - "PIAGGIO GENUINE PART" 125-350-500 X10 REAR, 125-300-350 BEVERLY REAR, 125-300 MP3 YOURBAN REAR (PAIR) -665842 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/4/2/4/img/205424.jpg)
9 |
PLAQUETTE DE FREIN AVANT ORIGINE PIAGGIO 300-350-400-500 MP3 2018> (VENDU A LA PLAQUETTE) -1C003813 More informationQuantity required : 2 |
||||||
|
9 |
PLAQUETTE DE FREIN AVANT ORIGINE PIAGGIO 300-350-400-500 MP3 2018> (VENDU A LA PLAQUETTE) -1C003813 More informationQuantity required : 2 |
