Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

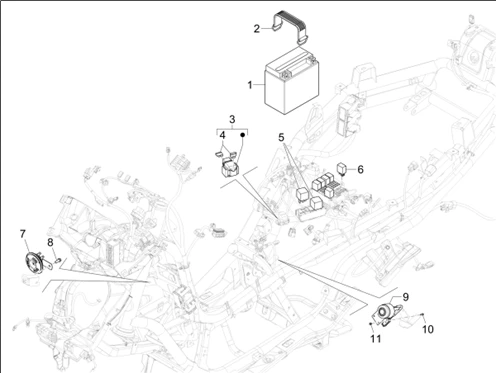

Circuit électrique : 06.05 RELAIS - BATTERIE - AVERTISSEUR SONORE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_06.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/6/9/5/0/img/136950.jpg)
1 |
BATTERY 12V 12 AH BTX14-BS "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 250-400 X-EVO/GILERA 125-250-300 NEXUS, 800 GP/APRILIA 125 SR-MAX, 750-1200 DORSODURO, 850 MANA (LG150XL87XH145) -1R000319 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/0/7/img/67807.jpg)
1 |
BATTERY 12V 12 AH YTX14-BS YUASA - MAINTENANCE FREE+ ACID PACK "PIAGGIO GENUINE PART" -638733 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/7/img/65677.jpg)
2 |
090854 - SANGLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/9/7/img/146197.jpg)
3 |
RELAY FOR ELECTRIC STARTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-400-500 CC/APRILIA 900 SHIVER, DORSODURO, 1000 RSV-4, TUONO V4 -1D001697R More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.jpg)
4 |
CM225730 - FUSIBLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/5/5/img/92155.jpg)
5 |
680172 - RELAIS DEMARREUR More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/6/img/139406.jpg)
6 |
RELAY+RESISTANCE 12V 30A "PIAGGIO GENUINE PART" 125-350-500 MP3, X10, 125-250-300 VESPA GTS, PORTER/APRILIA 1000 RSV-2, TUONO V2, FALCO, CAPONORD -1D001636 More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/2/7/img/198627.jpg)
7 |
CM071824 - HORN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
8 |
B016777 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/2/8/img/198628.jpg)
9 |
1D004330 - BUZZER ASSY More informationQuantity required : 1 |
|||||||||
10 |
1C000157 - BOULON More informationQuantity required : 2 |
|||||||||
|
11 |
B005195 - ECROU More informationQuantity required : 2 |
|||||||||
