Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

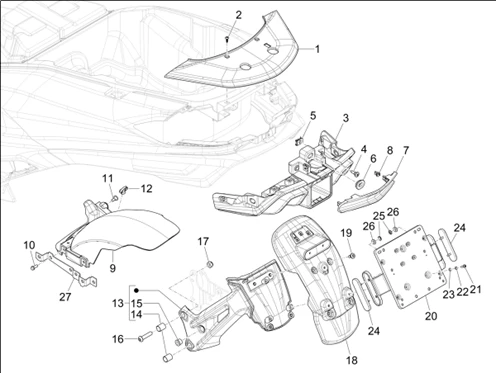

Châssis - parties plastiques - carrosseries : 02.37 COUVERCLE ARRIÈRE - PARE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.37.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/0/7/img/198807.jpg)
1 |
1B009011000D12 - REAR CLOSURE PANEL UPPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/7/9/img/198479.jpg)
1 |
1B009011000EZ - REAR CLOSURE PANEL UPPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/0/8/img/198808.jpg)
1 |
1B009011000G07 - REAR CLOSURE PANEL UPPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/8/0/img/198480.jpg)
1 |
1B009011000NO - REAR CLOSURE PANEL UPPER More informationQuantity required : 1 |
||||||
1 |
1B009011 - REAR CLOSURE PANEL UPPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/0/9/img/198809.jpg)
3 |
1B009499 - REAR CLOSURE PANEL LOWER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
4 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
6 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/1/0/img/198810.jpg)
7 |
1B009012000D12 - JOINT BODY SIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/8/7/img/198487.jpg)
7 |
1B009012000EZ - JOINT BODY SIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/1/1/img/198811.jpg)
7 |
1B009012000G07 - JOINT BODY SIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/8/8/img/198488.jpg)
7 |
1B009012000NO - JOINT BODY SIDE More informationQuantity required : 1 |
||||||
|
7 |
1B009012 - JOINT BODY SIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
8 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/1/2/img/198812.jpg)
9 |
1B009863 - RR MUDGARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
10 |
B016777 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
11 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202 More informationQuantity required : 2 |
||||||
|
12 |
641764 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/9/1/img/198491.jpg)
13 |
1B010223 - PLATE HOLDER SIDE COVER WITH P.I. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/9/2/img/198492.jpg)
14 |
1B009930 - SPACE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/9/3/img/198493.jpg)
15 |
1B009931 - SPACE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/2/img/67372.jpg)
16 |
599208 - VIS More informationQuantity required : 3 |
||||||
|
17 |
709052 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/9/4/img/198494.jpg)
18 |
1B009029 - REAR MUDGUARD More informationQuantity required : 1 |
||||||
|
19 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/8/9/img/140089.jpg)
20 |
1B004123 - PORTE-PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
21 |
015996 - VIS More informationQuantity required : 3 |
||||||
|
22 |
012531 - RONDELLE S01253100 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
23 |
003054 - RONDELLE S00305400 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/3/img/67253.jpg)
24 |
REAR REFLECTOR "PIAGGIO GENUINE PART" COMMON FOR ALL PIAGGIO RANGE -58233R5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
25 |
181351 - PLAQUETTE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/6/img/66586.jpg)
26 |
SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER/MAXISCOOTER -479882 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/2/6/0/img/78260.jpg)
27 |
2B001132 - SUPPORT More informationQuantity required : 1 |
