Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

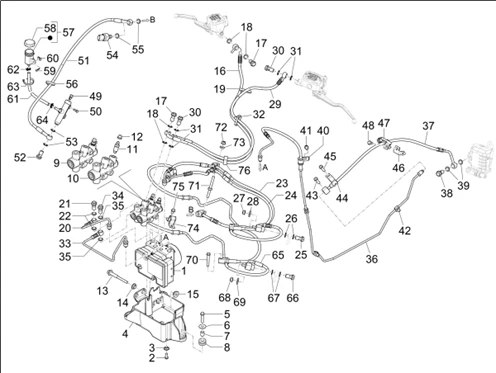

Instalation du freins - transmisisons : 05.06 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_05.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/9/9/img/198599.jpg)
1 |
1C006672 - ABS UNIT More informationQuantity required : 1 |
||||||
2 |
840541 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
3 |
AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5 More informationQuantity required : 3 |
||||||
|
4 |
1C004324 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
5 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
6 |
013092 - RONDELLE S01309200 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/3/img/66123.jpg)
7 |
SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE -273288 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/4/img/67134.jpg)
8 |
FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -576565 More informationQuantity required : 3 |
||||||
|
9 |
CM082807 - VOLET DE GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/6/7/img/95767.jpg)
10 |
BRAKE PRESSURE ADJUSTING VALVE "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS -CM082804- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/7/1/img/87271.jpg)
11 |
651461 - VIS DE PURGE FREIN More informationQuantity required : 1 |
||||||
|
12 |
651462 - CAPUCHON More informationQuantity required : 1 |
||||||
|
13 |
1C004403 - VIS M6X65 More informationQuantity required : 2 |
||||||
|
14 |
1C004404 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
15 |
1C004405 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/0/0/img/198600.jpg)
16 |
1C006482 - RIGHT BRAKE HOSE - FRONT VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/5/img/127555.jpg)
17 |
1C002059R - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
18 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
19 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
|
20 |
1C003931 - CANALISATION FREINS More informationQuantity required : 1 |
||||||
|
21 |
1C002059R - VIS More informationQuantity required : 1 |
||||||
|
22 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 2 |
||||||
|
23 |
1C006483 - ABS UNIT HOSE - RIGHT JUNCTION More informationQuantity required : 1 |
||||||
|
24 |
1C006484 - UNIT ABS HOSE - LEFT JUNKCION More informationQuantity required : 1 |
||||||
|
25 |
1C002059R - VIS More informationQuantity required : 2 |
||||||
|
26 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
27 |
241936 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
28 |
013950 - RONDELLE S01395000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/0/3/img/198603.jpg)
29 |
1C006481 - LEFT BRAKE HOSE - REAR VALVE More informationQuantity required : 1 |
||||||
|
30 |
1C002059R - VIS More informationQuantity required : 2 |
||||||
|
31 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 4 |
||||||
|
32 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
|
33 |
1C003932 - CANALISATION FREINS More informationQuantity required : 1 |
||||||
|
34 |
1C002059R - VIS More informationQuantity required : 1 |
||||||
|
35 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/0/4/img/198604.jpg)
36 |
1C006485 - BRAKE HOSE REAR CALIPER - ABS HECU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/3/5/img/198835.jpg)
37 |
1C006825 - CALIPER REAR BRAKE HOSE More informationQuantity required : 1 |
||||||
|
38 |
1C002059R - VIS More informationQuantity required : 1 |
||||||
|
39 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 2 |
||||||
|
40 |
598795 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
41 |
969296 - BOULON More informationQuantity required : 1 |
||||||
|
42 |
179013 - RESSORT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
43 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
44 |
1C003825 - COLLIER More informationQuantity required : 1 |
||||||
|
45 |
B016777 - VIS More informationQuantity required : 1 |
||||||
|
46 |
1C006680 - COMPLETE BRACKET BRAKING SYSTEM More informationQuantity required : 1 |
||||||
|
47 |
1C006856 - CLAMP More informationQuantity required : 1 |
||||||
|
48 |
B016777 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/7/1/img/86871.jpg)
49 |
BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -648798 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
50 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/0/8/img/198608.jpg)
51 |
1C006488 - BLOCK DEVICE HOSE More informationQuantity required : 1 |
||||||
|
52 |
1C002059R - VIS More informationQuantity required : 1 |
||||||
|
53 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/9/2/6/img/85926.jpg)
54 |
OIL PRESSURE SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -640295 More informationQuantity required : 1 |
||||||
|
55 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
56 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/4/6/9/img/77469.jpg)
57 |
MAIN BRAKE FLUID TANK "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/APRILIA 500 FUOCO -274598 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/2/3/img/79623.jpg)
58 |
498431 - BOUCHON RESERV LOOCK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
59 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
60 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
||||||
|
61 |
1C006729 - CONNECTOR PIPE OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/3/img/72873.jpg)
62 |
CM001912 - COLLIER More informationQuantity required : 1 |
||||||
|
63 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
64 |
CM001901 - COLLIER More informationQuantity required : 1 |
||||||
|
65 |
1C006487 - ROLLING BRAKE HOSE More informationQuantity required : 1 |
||||||
|
66 |
1C002059R - VIS More informationQuantity required : 2 |
||||||
|
67 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 4 |
||||||
|
68 |
241936 - ECROU More informationQuantity required : 2 |
||||||
|
69 |
013950 - RONDELLE S01395000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
70 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 1 |
||||||
|
71 |
2B000952 - VIS SANS T?TE More informationQuantity required : 1 |
||||||
|
72 |
241936 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/5/img/63805.jpg)
73 |
006175 - RONDELLE S00617500 More informationQuantity required : 1 |
||||||
|
74 |
601970 - COLLIER More informationQuantity required : 1 |
||||||
|
75 |
969296 - BOULON More informationQuantity required : 2 |
||||||
|
76 |
667156 - COLLIER More informationQuantity required : 1 |
