Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

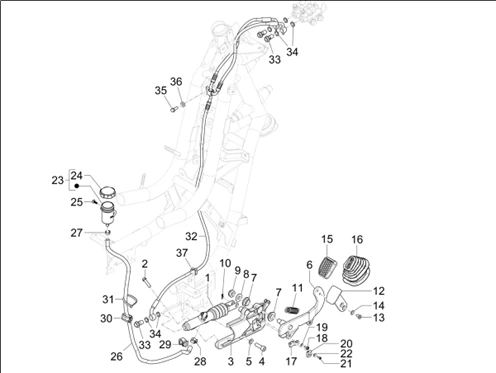

Instalation du freins - transmisisons : 05.05 GROUPE PÉDALES - LEVIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_05.05.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/8/7/img/198587.jpg)
1 |
CM082904 - BRAKE PUMP More informationQuantity required : 1 |
||||||
2 |
1C004660 - FLANGED HEXAGONAL SCREW M6X25 More informationQuantity required : 2 |
||||||
|
3 |
1C006269 - COMPLETE BRAKE PUMP BRACKET More informationQuantity required : 1 |
||||||
|
4 |
1C003712 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
5 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/9/0/img/198590.jpg)
6 |
1C006458 - BRAKE PEDAL WITH I.P. More informationQuantity required : 1 |
||||||
|
7 |
650636 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
8 |
178790 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
9 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 1 |
||||||
|
10 |
1C004752 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/1/3/img/87113.jpg)
11 |
650670 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/9/1/img/198591.jpg)
12 |
1C006273 - PEDAL WITH IP More informationQuantity required : 1 |
||||||
|
13 |
1C006397 - TORX SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
14 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
|
15 |
1B006304 - EMBOUT PEDALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/9/3/img/198593.jpg)
16 |
1B009619 - BELLOWS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/9/4/img/198594.jpg)
17 |
1C006387 - LEFT STOP BUTTON SUPPORT BRACKET More informationQuantity required : 1 |
||||||
|
18 |
1C006342 - SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
19 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
||||||
|
20 |
1D003113 - LEFT PUSH BUTTON More informationQuantity required : 1 |
||||||
|
21 |
1C006328 - SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/3/img/65363.jpg)
22 |
013836 - RONDELLE S01383600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/4/6/9/img/77469.jpg)
23 |
MAIN BRAKE FLUID TANK "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/APRILIA 500 FUOCO -274598 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/2/3/img/79623.jpg)
24 |
498431 - BOUCHON RESERV LOOCK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
25 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 1 |
||||||
|
26 |
1C006730 - CONNECTION TUBE OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/3/img/72873.jpg)
27 |
CM001912 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
28 |
CM001901 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
29 |
CM013203 - RESSORT More informationQuantity required : 1 |
||||||
|
30 |
CM006904 - OLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
31 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
|
32 |
1C006486 - BRAKE PEDAL HOSE - VALVES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/5/5/5/img/127555.jpg)
33 |
1C002059R - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
34 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927 More informationQuantity required : 6 |
||||||
|
35 |
1C001475 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/5/img/63805.jpg)
36 |
006175 - RONDELLE S00617500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
37 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
