Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

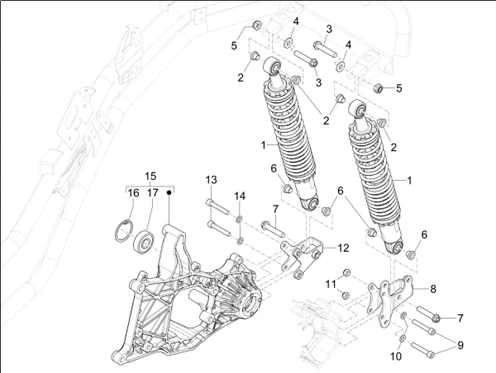

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_04.10.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/2/5/img/198825.jpg)
1 |
1C006826 - GAS REAR SHOCK ABSORBER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/5/7/4/img/151574.jpg)
2 |
1C003626 - MOYEU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/4/img/67364.jpg)
3 |
598838 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
4 |
178790 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
5 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 2 |
||||||
|
6 |
1C003626 - MOYEU More informationQuantity required : 4 |
||||||
7 |
1C006561 - HEXAG HEAD SCREW PRELOCT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/2/7/img/198827.jpg)
8 |
1C006528 - BRACKET WITH I.P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
9 |
844483 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
10 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
|
11 |
709052 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/2/8/img/198828.jpg)
12 |
1C006529 - SUPPORT WITH I.P More informationQuantity required : 1 |
||||||
|
13 |
1C006027 - VIS CYLINDRIQUE More informationQuantity required : 2 |
||||||
|
14 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/2/9/img/198829.jpg)
15 |
1A019978 - COMPLETE ARM REAR SUSP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
16 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
17 |
BEARING FOR REAR SUPENSION ARM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82545R More informationQuantity required : 1 |
