Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

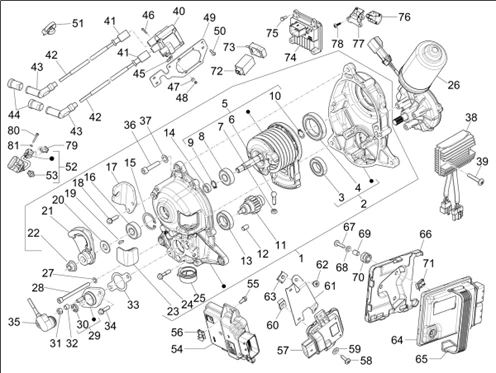

Circuit électrique : 06.06 RÉGULATEURS DE TENSION - CENTRALES ELECTRONIQUES - BOBINE H.T.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_06.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/8/3/img/90183.jpg)
1 |
ANTI-ROLLING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 - 667185 More informationQuantity required : 1 |
||||||
2 |
846939 - BOITE DISP.ANTIROLLIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/7/3/3/img/92733.jpg)
3 |
82627R - ROULEMENT More informationQuantity required : 1 |
||||||
|
4 |
846977 - ROULEMENT More informationQuantity required : 1 |
||||||
|
5 |
648641 - GR.RESSORT More informationQuantity required : 1 |
||||||
|
6 |
648700 - TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
7 |
020206 - ECROU S02020600 More informationQuantity required : 1 |
||||||
|
8 |
843701 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/2/img/63812.jpg)
9 |
006412 - CIRCLIPS S00641200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/7/7/img/109777.jpg)
10 |
006414 - CIRCLIPS S00641400 More informationQuantity required : 1 |
||||||
|
11 |
667172 - AXE PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
12 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916 More informationQuantity required : 2 |
||||||
|
13 |
82627R - ROULEMENT More informationQuantity required : 1 |
||||||
|
14 |
846834 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/2/img/63822.jpg)
15 |
006632 - ANNEAU ELAST. S00663200 More informationQuantity required : 1 |
||||||
|
16 |
843701 - ROULEMENT More informationQuantity required : 1 |
||||||
|
17 |
649025 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
18 |
018639 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
19 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267 More informationQuantity required : 1 |
||||||
|
20 |
646516 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
21 |
649402 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
22 |
NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519 More informationQuantity required : 1 |
||||||
|
23 |
647190 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
24 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 4 |
||||||
|
25 |
648800 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/0/5/img/81605.jpg)
26 |
ANTI-ROLLING DEVICE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -58159R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
27 |
006966 - RONDELLE S00696600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/5/img/66605.jpg)
28 |
481032 - VIS DE FILTRE FX More informationQuantity required : 3 |
||||||
|
29 |
667179 - PLAQUE POUR SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/6/5/img/90165.jpg)
30 |
667171 - BAGUE ETANCHEITEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/8/img/65818.jpg)
31 |
195482 - ECROU More informationQuantity required : 1 |
||||||
|
32 |
667159 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/4/7/img/86947.jpg)
33 |
649367 - JOINT More informationQuantity required : 1 |
||||||
|
34 |
018639 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/5/6/8/img/146568.jpg)
35 |
ROTARY SENSOR "PIAGGIO GENUINE PART" 125-300-500 MP3 -6425555 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/2/9/img/78329.jpg)
36 |
319538 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
37 |
006976 - RONDELLE S00697600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/5/1/img/158251.jpg)
38 |
1A012332 - REGULATEUR DE TENSION More informationQuantity required : 1 |
||||||
|
39 |
018639 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/2/6/img/67826.jpg)
40 |
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" 500 MP3, X10, BEVERLY/GILERA 500 FUOCO, 800 GP/APRILIA 850 SRV, MANA, 500 SCARABEO -639187 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/1/img/65661.jpg)
41 |
071671 - CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
42 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/6/img/66266.jpg)
43 |
SPARK PLUG CAP "PIAGGIO GENUINE PART"COMMON TO ALL THE MAXISCOOTER RANGE -293845 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/7/img/67937.jpg)
44 |
SPARK PLUG PROTECTION CLAMP "PIAGGIO GENUINE PART" -641643 More informationQuantity required : 2 |
||||||
|
45 |
856117 - CLAVETTE More informationQuantity required : 1 |
||||||
|
46 |
840543 - VIS More informationQuantity required : 4 |
||||||
|
47 |
012531 - RONDELLE S01253100 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
48 |
020104 - ECROU S02010400 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/2/3/2/img/78232.jpg)
49 |
2B000797 - BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
50 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 2 |
||||||
|
51 |
640879 - COLLIER More informationQuantity required : 2 |
||||||
|
52 |
1D004019 - BRAKE CALIPER STOP PUSH BOTTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
53 |
639560 - RESSORT More informationQuantity required : 1 |
||||||
|
54 |
1D003817 - PARKING ELECTRONIC UNIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
55 |
B016426 - VIS TEF M6X14 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
56 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/7/6/8/img/204768.jpg)
57 |
CM335203 - CALCULATEUR MULTIMÃ-DIA More informationQuantity required : 1 |
||||||
|
57 |
CM335203 - CALCULATEUR MULTIMÃ-DIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
58 |
CM179302 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
59 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
|
60 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
61 |
1B009824 - BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
62 |
CM179301 - VIS More informationQuantity required : 2 |
||||||
|
63 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/4/1/img/198841.jpg)
64 |
CM30182745 - ELECTRONIC CONTROL UNIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/7/img/65677.jpg)
65 |
090854 - SANGLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/4/2/img/198842.jpg)
66 |
1B009472 - ECU COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/9/img/96289.jpg)
67 |
CM179305 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/3/img/65683.jpg)
68 |
097734 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/3/img/66123.jpg)
69 |
SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE -273288 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
70 |
AP8220150 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
|
71 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
|
72 |
1D004086 - BLINKER DEVICES WITH HAZARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/6/img/66246.jpg)
73 |
291017 - SUPPORT More informationQuantity required : 1 |
||||||
|
74 |
1D003851 - RADAR DEVICE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
75 |
031056 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/4/4/img/198844.jpg)
76 |
1D003809 - COMPLETE REAR CAMERA More informationQuantity required : 1 |
||||||
|
77 |
1B009866 - CAMERA SUPPORT More informationQuantity required : 1 |
||||||
|
78 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 2 |
||||||
|
79 |
1C006477 - SPACER More informationQuantity required : 1 |
||||||
|
80 |
1C006655 - SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/3/img/65363.jpg)
81 |
013836 - RONDELLE S01383600 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
-
01.02 Moteur complet
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.02.png)
-
01.05 CARTER MOTEUR
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.05.png)
-
01.06 Vilebrequin
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.06.png)
-
01.07 Groupe cylindre-piston-axe
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.07.png)
-
01.10 Ensemble culasse - Soupape
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.10.png)
-
01.11 Groupe support balanciers
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.11.png)
-
01.12 Couvercle culasse
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.12.png)
-
01.13 Poulie motrice
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.13.png)
-
01.14 Poulie entrainee
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.14.png)
-
01.15 Couvercle carter - Refoidissement carter
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.15.png)
-
01.18 Pompe à huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.18.png)
-
01.19 Pompe à eau
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.19.png)
-
01.20 Démarrage - Démarrage électrique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.20.png)
-
01.21 Volant magnetique
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.21.png)
-
01.23 Couvercle volant magnetique - Filtre à huile
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.23.png)
-
01.25 Ensemble réducteur
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.25.png)
-
01.27 Reverse gear assy
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.27.png)
-
01.36 Boîtier papillon - Injecteur - Raccord d'admission
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.36.png)
-
01.42 Silencieux
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.42.png)
-
01.45 Filtre à air
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.45.png)
-
02.01 Châssis/coque
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.01.png)
-
02.25 Béquille/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.25.png)
-
02.26 Tablier avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.26.png)
-
02.27 Pare-brise - Glaces
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.27.png)
-
02.30 Coffre avant - Contre-tablier
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.30.png)
-
02.31 Protection centrale - Repose-pieds
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.31.png)
-
02.32 Couvertures laterales - Spoiler
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.32.png)
-
02.33 Logement roue - Garde boue
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.33.png)
-
02.34 Logement casque - Dessous de selle
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.34.png)
-
02.37 Couvercle arrière - Pare-boue
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.37.png)
-
02.38 Monogrammes - Decorations
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.38.png)
-
02.39 Selle/sieges
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.39.png)
-
02.45 Rétroviseur/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.45.png)
-
02.46 Serrures
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.46.png)
-
02.47 Reservoir
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.47.png)
-
02.55 Instalation de refoidissement
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.55.png)
-
02.61 Système anti-évaporation
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.61.png)
-
03.01 Couvertures guidon
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_03.01.png)
-
03.02 Groupe instruments - Cruscotto
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_03.02.png)
-
03.06 Guidon - Maître cylindre
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_03.06.png)
-
04.01 Bras oscillant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_04.01.png)
-
04.02 Fourche/tube direction - Ensemble butée dir.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_04.02.png)
-
04.07 Composants de la fourche (Mingxing)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_04.07.png)
-
04.10 Suspension arrière - Amortisseur/s
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_04.10.png)
-
04.11 Roue avant
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_04.11.png)
-
04.12 Roue arrière
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_04.12.png)
-
05.02 Tuyaus du freins - Etriers de frein (ABS)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_05.02.png)
-
05.05 Groupe pédales - Leviers
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_05.05.png)
-
05.06 Système frein ABS
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_05.06.png)
-
06.01 Inverseurs - Commutateurs - Boutons - Interrupteurs
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_06.01.png)
-
06.03 Eclairages avant - Clignotants
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_06.03.png)
-
06.04 Eclairages arrière - Clignotants
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_06.04.png)
-
06.05 Relais - Batterie - Avertisseur sonore
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_06.05.png)
-
06.06 Régulateurs de tension - Centrales electroniques - Bobine H.T.
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_06.06.png)
-
06.08 Faisceau de câbles principal
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_06.08.png)
-
07.01 Complete wear and maintenance kit
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_07.01.png)
