Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

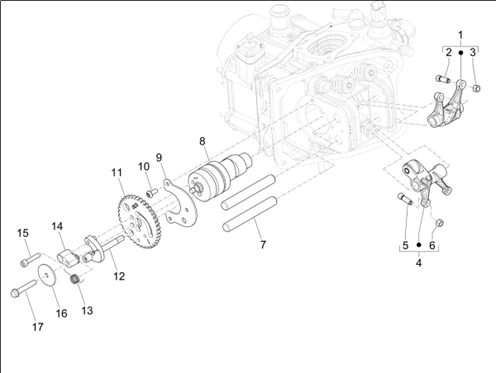

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.11.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/5/5/img/198755.jpg)
1 |
1A021316 - COMPLETE INTAKE ROCKER ARM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/5/6/img/198756.jpg)
2 |
1A021303 - SCREW - TIP ASSY More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/5/7/img/198757.jpg)
3 |
1A021306 - LOW HEXAGONAL NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/5/8/img/198758.jpg)
4 |
1A021314 - COMPLETE HEXAUST SIDE ROCKER ARM More informationQuantity required : 2 |
||||||
|
5 |
1A021303 - SCREW - TIP ASSY More informationQuantity required : 2 |
||||||
|
6 |
1A021306 - LOW HEXAGONAL NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/5/9/2/img/174592.jpg)
7 |
1A017827 - ROCKER ARM SHAFT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/5/9/img/198759.jpg)
8 |
1A0217040D - CAMSHAFT WITH I.P. CAT.D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/6/0/img/198760.jpg)
8 |
1A0217040E - CAMSHAFT WITH I.P. CAT,E More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/6/1/img/198761.jpg)
8 |
1A0217040F - CAMSHAFT WITH I.P. CAT.F More informationQuantity required : 1 |
||||||
9 |
1A020966 - CAMSHAFT STEEL FOR CAMSHAFT CONTAINMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/8/img/72648.jpg)
10 |
SCREW - (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER + MOTORBIKE -B014598 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/6/3/img/198763.jpg)
11 |
1A020508 - TIMING CROWN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/6/4/img/198764.jpg)
12 |
CM324201 - DECOMPRESSION MASS CLASS D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/6/5/img/198765.jpg)
12 |
CM324202 - DECOMPRESSION MASS CLASS E More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/6/6/img/198766.jpg)
12 |
CM324203 - DECOMPRESSION MASS CLASS F More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/3/0/img/94830.jpg)
13 |
DECOMPRESSION SPRING "PIAGGIO GENUINE PART" 500 MP3 -B018492 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/5/4/img/75354.jpg)
14 |
DECOMPRESSOR COUNTERWEIGHT "PIAGGIO GENUINE PART" 500 MP3 -1A001471 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/8/img/127168.jpg)
15 |
1A003115 - VIS M5X25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/5/5/img/75355.jpg)
16 |
1A001480 - RONDELLE PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
17 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -414838 More informationQuantity required : 1 |
