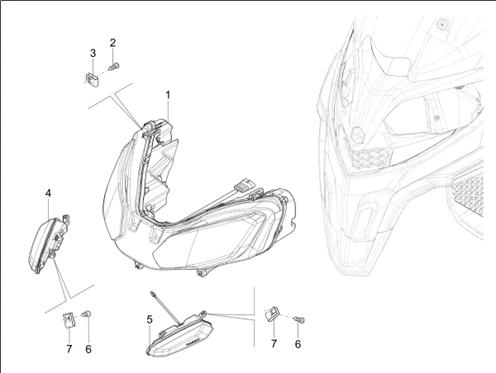

Circuit électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_06.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/5/7/8/img/205578.jpg)
1 |
OPTIQUE/PHARE/PROJECTEUR ORIGINE PIAGGIO 400-530 MP3 2022> -1D004549 More informationQuantity required : 1 |
||||||
|
1 |
OPTIQUE/PHARE/PROJECTEUR ORIGINE PIAGGIO 400-530 MP3 2022> -1D004549 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
3 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/9/1/0/img/205910.jpg)
4 |
CLIGNOTANT AVANT DROIT ORIGINE PIAGGIO 400-530 MP3 2022> -1D004551 More informationQuantity required : 1 |
||||||
|
4 |
CLIGNOTANT AVANT DROIT ORIGINE PIAGGIO 400-530 MP3 2022> -1D004551 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/0/5/1/img/205051.jpg)
5 |
CLIGNOTANT AVANT GAUCHE ORIGINE PIAGGIO 400-530 MP3 2022> -1D004550 More informationQuantity required : 1 |
||||||
|
5 |
CLIGNOTANT AVANT GAUCHE ORIGINE PIAGGIO 400-530 MP3 2022> -1D004550 More informationQuantity required : 1 |
||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
||||||
|
7 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
