Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

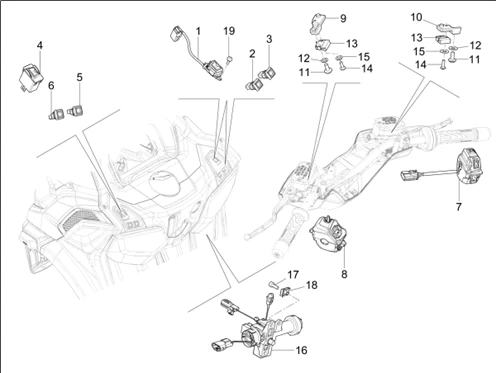

Circuit électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_06.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/5/9/1/9/img/205919.jpg)
1 |
BOUTON/INTERRUPTEUR DRL ORIGINE PIAGGIO 400-530 MP3 2022> -1D0043895 More informationQuantity required : 1 |
||||||
|
1 |
BOUTON/INTERRUPTEUR DRL ORIGINE PIAGGIO 400-530 MP3 2022> -1D0043895 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/1/2/img/198612.jpg)
2 |
1D003966 - ASR PUSH BUTTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/1/3/img/198613.jpg)
3 |
1D004176 - PLUG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/3/6/img/198836.jpg)
4 |
1D003979 - REVERSE GEAR SWITCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/1/5/img/198615.jpg)
5 |
1D003965 - OPEN FUEL TANK PUSH BUTTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/1/4/img/198614.jpg)
6 |
1D003964 - OPEN SADDLE PUSH BUTTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/1/6/img/198616.jpg)
7 |
1D003732 - COMPLETE RIGHT ELETTRICAL DEVICE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/3/7/img/198837.jpg)
8 |
1D003731 - COMPLETE LEFT ELETTRICAL DEVICE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/9/4/img/198594.jpg)
9 |
1C006387 - LEFT STOP BUTTON SUPPORT BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/3/8/img/198838.jpg)
10 |
1C006384 - RIGHT STOP BUTTON SUPPORT BRACKET More informationQuantity required : 1 |
||||||
11 |
1C006342 - SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
12 |
003054 - RONDELLE S00305400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/3/9/img/198839.jpg)
13 |
1D003842 - STOP SWITCH/PUSH BUTTON More informationQuantity required : 2 |
||||||
|
14 |
1C006328 - SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/3/img/65363.jpg)
15 |
013836 - RONDELLE S01383600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/6/1/8/img/198618.jpg)
16 |
1D003938 - BLOCK More informationQuantity required : 1 |
||||||
|
17 |
239687 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
18 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/3/8/img/195738.jpg)
19 |
296141 - VIS More informationQuantity required : 2 |
