Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

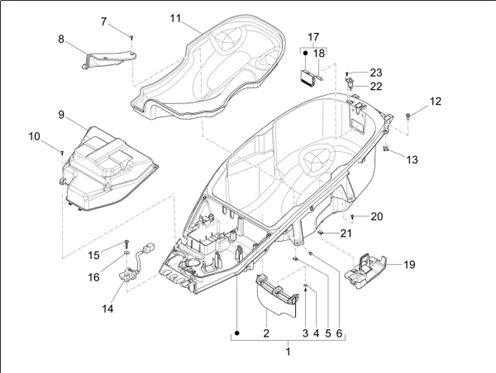

Châssis - parties plastiques - carrosseries : 02.34 LOGEMENT CASQUE - DESSOUS DE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.34.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/0/6/img/198806.jpg)
1 |
1B0107555 - HELMET HOLDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/7/1/img/198471.jpg)
2 |
1B009801 - REAR MUDFLAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
4 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
5 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
6 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/8/5/img/78185.jpg)
8 |
2B000721 - ABATTANT BOUGIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/7/2/img/198472.jpg)
9 |
1B009025 - BATTEY COVER More informationQuantity required : 1 |
||||||
|
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/7/3/img/198473.jpg)
11 |
1B010212 - CARPET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
12 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/4/1/2/img/174412_20251023150511.jpg)
14 |
2D000473 - ROLL OVER SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/3/1/1/img/96311.jpg)
15 |
CM180703 - VIS More informationQuantity required : 1 |
||||||
16 |
224664 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/1/img/66261.jpg)
17 |
293154 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/0/img/65660.jpg)
18 |
LIGHT BULB 12V5W BA15S TRUNK INTERIOR LIGHT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER RANGE -071633 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/7/4/img/198474.jpg)
19 |
1B009626 - KEYLESS COVER More informationQuantity required : 1 |
||||||
|
20 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
|
21 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/1/img/66011.jpg)
22 |
HELMET COMPARTMENT LIGHT SWITCH "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -255323 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
23 |
018536 - VIS More informationQuantity required : 1 |
