Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

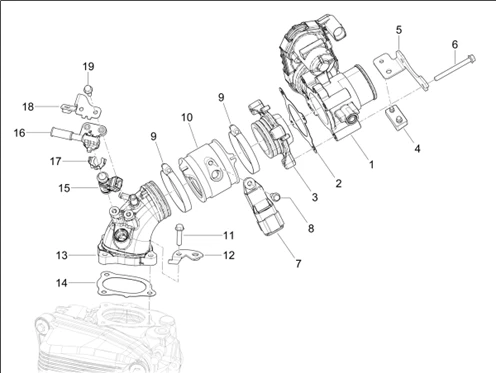

Moteur : 01.36 BOÎTIER PAPILLON - INJECTEUR - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.36.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/1/8/img/174618.jpg)
1 |
CM310901 - RIDE BY WIRE INTEGRATED UNIT (RIU) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/1/9/img/174619.jpg)
2 |
1A018766 - THROTTLE BODY GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/2/0/img/174620.jpg)
3 |
1A018606 - TROTTLE BODY FLANGE More informationQuantity required : 1 |
||||||
4 |
1A018196 - BUFFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/2/2/img/174622.jpg)
5 |
1A018195 - SUPPORT BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/3/img/70533.jpg)
6 |
SCREW - (M6X100X55) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA -874552 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/9/5/img/99295.jpg)
7 |
887015 - SENSORE TEMPERATURA/PRESSIONE ARIA More informationQuantity required : 1 |
||||||
|
8 |
1A003050 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/0/img/66230.jpg)
9 |
289690 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/2/4/img/174624.jpg)
10 |
1A019118 - INTAKE FITTING MANIFOLD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
11 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/8/8/img/75388.jpg)
12 |
1A003175 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/8/0/img/198780.jpg)
13 |
1A022861 - INTAKE FITTING WITH I.P. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/8/1/img/198781.jpg)
14 |
1A020164 - INTAKE FITTING GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/2/6/img/174626.jpg)
15 |
CM291203 - FUEL INJECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/0/4/5/img/156045.jpg)
16 |
1A013640 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/0/3/img/39103.jpg)
17 |
849898 - PINCE DE RETENUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/2/7/img/174627.jpg)
18 |
1A017767 - PHASING INJECTOR PLATE WITH I.P. More informationQuantity required : 1 |
||||||
|
19 |
1A015812 - VIS More informationQuantity required : 2 |
