Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

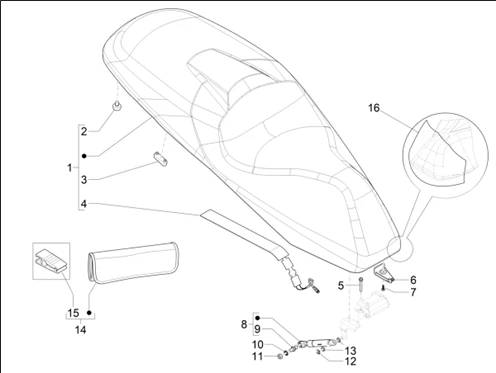

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.39.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/1/6/img/198816.jpg)
1 |
1B009803000C1 - SADDLE, ASSY. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
2 |
SADDLE PAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -577492 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
3 |
296456 - TAMPON More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/0/3/img/198503.jpg)
4 |
640701 - PILOT SENSOR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/2/img/70532.jpg)
5 |
874550 - VIS More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/0/4/img/198504.jpg)
6 |
1B009786 - COVER FOR CABLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/0/5/img/198505.jpg)
8 |
1B010446 - GAS SPRING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/5/4/img/39854.jpg)
9 |
854578 - PIVOT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
10 |
012540 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
11 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/8/img/63798.jpg)
12 |
005967 - CLIPS S00596700 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/1/1/1/img/91111.jpg)
13 |
673412 - RONDELLE More informationQuantity required : 2 |
|||||||||
14 |
1C004232 - TROUSSE OUTILS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/7/7/img/140377.jpg)
15 |
584654 - EXTRACTEUR DE FUSIBLES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/1/7/img/198817.jpg)
16 |
1B005121 - SADDLE COVER More informationQuantity required : 1 |
|||||||||
