Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

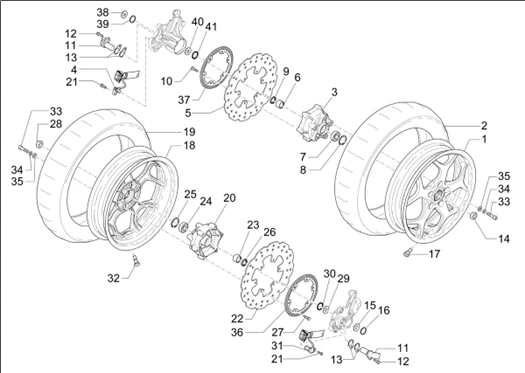

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_04.11.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/7/1/img/198571.jpg)
1 |
1C006202000G28 - FRONT WHEEL More informationQuantity required : 1 |
||||||
1 |
1C006202 - FRONT WHEEL More informationQuantity required : 1 |
||||||
|
2 |
2B000757 - PNEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/7/1/img/87171.jpg)
3 |
FRONT WHEEL HUB "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS -650907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/2/7/5/img/78275.jpg)
4 |
2D000066 - FAISC. DE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/4/6/4/img/151464.jpg)
5 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" PIAGGIO 300 MP3 HPE 2019>, 350-500 MP3 2018> -1C003375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/8/img/65778.jpg)
6 |
ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/3/0/img/75030.jpg)
7 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177610 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/3/img/63823.jpg)
8 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/3/img/75023.jpg)
9 |
FRONT WHEEL GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177443 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/9/7/6/img/75976.jpg)
10 |
1C000291 - VIS M6X22 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/4/0/img/85740.jpg)
11 |
SENSOR FOR FRONT ABS "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -639366 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/1/6/img/151116.jpg)
12 |
5A000656 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/4/2/img/90442.jpg)
13 |
668780 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/7/3/img/198573.jpg)
14 |
668001 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/4/img/75024.jpg)
15 |
177445 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/6/img/65776.jpg)
16 |
177408 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
17 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
|
18 |
1C006202000G28 - FRONT WHEEL More informationQuantity required : 1 |
||||||
|
18 |
1C006202 - FRONT WHEEL More informationQuantity required : 1 |
||||||
|
19 |
2B000757 - PNEU More informationQuantity required : 1 |
||||||
|
20 |
FRONT WHEEL HUB "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS -650907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
21 |
B016777 - VIS More informationQuantity required : 2 |
||||||
|
22 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" PIAGGIO 300 MP3 HPE 2019>, 350-500 MP3 2018> -1C003375 More informationQuantity required : 1 |
||||||
|
23 |
ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442 More informationQuantity required : 1 |
||||||
|
24 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177610 More informationQuantity required : 1 |
||||||
|
25 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635 More informationQuantity required : 1 |
||||||
|
26 |
FRONT WHEEL GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177443 More informationQuantity required : 1 |
||||||
|
27 |
1C000291 - VIS M6X22 More informationQuantity required : 6 |
||||||
|
28 |
668001 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/8/img/75028.jpg)
29 |
177521 - BAGUE ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/1/img/75021.jpg)
30 |
177414 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/2/7/4/img/78274.jpg)
31 |
2D000065 - GRUPPO CAVI More informationQuantity required : 1 |
||||||
|
32 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
33 |
SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/8/img/68798.jpg)
34 |
WHEEL WASHER OR CALIPER WASHER "PIAGGIO GENUINE PART" 125-300-400 MP3, 125-250-300 VESPA GTS, BEVERLY, CARNABY/GILERA 125-250-300 NEXUS -828961 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
35 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/2/7/img/151227.jpg)
36 |
ABS PHONIC WHEEL(FRONT) "PIAGGIO GENUINE PART" 300-350-500 MP3 2014> -2B0006075 More informationQuantity required : 1 |
||||||
|
37 |
ABS PHONIC WHEEL(FRONT) "PIAGGIO GENUINE PART" 300-350-500 MP3 2014> -2B0006075 More informationQuantity required : 1 |
||||||
|
38 |
177445 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
39 |
177408 - BAGUE More informationQuantity required : 1 |
||||||
|
40 |
177521 - BAGUE ETANCHEITE More informationQuantity required : 1 |
||||||
|
41 |
177414 - ENTRETOISE More informationQuantity required : 1 |
