Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

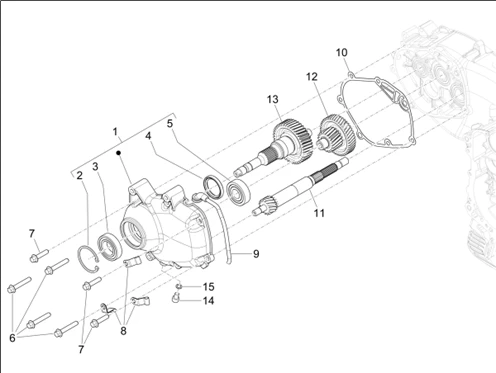

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.25.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/8/8/img/68988.jpg)
1 |
TRANSMISSION REDUCER COVER "PIAGGIO GENUINE PART" 400 500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, NEXUS -8320525 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/2/5/img/68825.jpg)
2 |
CIRCLIP -829206 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/3/img/139393.jpg)
3 |
TRANSMISSION BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A005376R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/9/img/68939.jpg)
4 |
SEAL RING GASKET-FOR WHEEL HUB (38X50X7) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -83082R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/0/img/68610.jpg)
5 |
BEARING FOR INTERMEDIATE TRANSMISSION SHAFT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -82660R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/7/2/img/109872.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A001623 More informationQuantity required : 4 |
||||||
|
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1A001623 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/8/img/72718.jpg)
7 |
SCREW - M8X35 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B016772 More informationQuantity required : 3 |
||||||
8 |
487948 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/6/2/img/69162.jpg)
9 |
BREATHER VALVE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER 400-500 CC -840733 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/2/img/69552.jpg)
10 |
GASKET FOR REDUCING SYSTEM COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -847963 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/7/6/img/198776.jpg)
11 |
1A017655 - DRIVEN PULLEY SHAFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/7/7/img/198777.jpg)
12 |
1A020593 - LAY SHAFT ASSY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/7/8/img/198778.jpg)
13 |
1A020595 - WHEEL SHAFT SUB-ASSY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
14 |
269755 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
15 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703 More informationQuantity required : 1 |
