Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

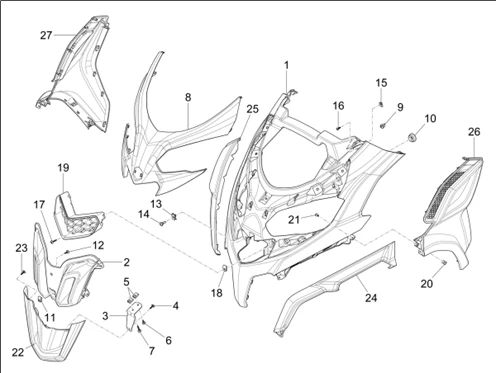

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.26.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/7/3/7/1/img/207371.jpg)
1 |
CARENAGE/FACE AVANT ORIGINE PIAGGIO 400-530 MP3 2022> GRIS TITANIO EZ -1B008992000EZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/6/6/6/2/img/206662.jpg)
1 |
CARENAGE/FACE AVANT ORIGINE PIAGGIO 400-530 MP3 2022> NOIR METEORA NO -1B011680000NO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/7/1/img/210671.jpg)
1 |
CARENAGE/FACE AVANT ORIGINE PIAGGIO 400-530 MP3 2022> GRIS CLOUD MAT G07 -1B011680000G07 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/9/2/img/198792.jpg)
1 |
1B008992000D12 - SHIELD More informationQuantity required : 1 |
||||||
|
1 |
CARENAGE/FACE AVANT ORIGINE PIAGGIO 400-530 MP3 2022> NOIR METEORA NO -1B011680000NO More informationQuantity required : 1 |
||||||
|
1 |
CARENAGE/FACE AVANT ORIGINE PIAGGIO 400-530 MP3 2022> GRIS CLOUD MAT G07 -1B011680000G07 More informationQuantity required : 1 |
||||||
|
1 |
CARENAGE/FACE AVANT ORIGINE PIAGGIO 400-530 MP3 2022> GRIS TITANIO EZ -1B008992000EZ More informationQuantity required : 1 |
||||||
1 |
1B008992 - SHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/8/7/img/198387.jpg)
2 |
1B008989000G26 - LOWER SHIELD COVER More informationQuantity required : 1 |
||||||
|
2 |
1B008989 - LOWER SHIELD COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/9/0/img/198390.jpg)
3 |
1B010210 - PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
5 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/1/img/73361.jpg)
7 |
CM178610 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/9/4/img/198794.jpg)
8 |
1B008990000G26 - MIDDLE COVER SHIELD More informationQuantity required : 1 |
||||||
|
8 |
1B008990 - MIDDLE COVER SHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
9 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
10 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888 More informationQuantity required : 4 |
||||||
|
11 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 3 |
||||||
|
12 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
13 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
14 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 2 |
||||||
|
15 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
||||||
|
16 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
||||||
|
17 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
|
18 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/9/5/img/198395.jpg)
19 |
1B008985 - SHIELD GRID More informationQuantity required : 1 |
||||||
|
20 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
||||||
|
21 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/9/6/img/198396.jpg)
22 |
1B010144 - LOWER END SHIELD More informationQuantity required : 1 |
||||||
|
23 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/9/7/img/198397.jpg)
24 |
1B0089810000C - FRONT LEFT WHEELHOUSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/9/8/img/198398.jpg)
25 |
1B0089820000C - FRONT RIGHT WHEELHOUSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/3/9/9/img/198399.jpg)
26 |
1B0089830000C - REAR LEFT WHEELHOUSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/4/0/0/img/198400.jpg)
27 |
1B0089840000C - REAR RIGHT WHEELHOUSE More informationQuantity required : 1 |
