Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

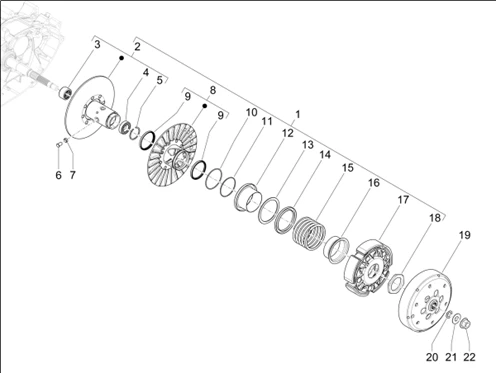

Moteur : 01.14 POULIE ENTRAINEE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.14.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/0/3/img/174603.jpg)
1 |
CM314002 - DRIVEN PULLEY GROUP WITH CLUTCH More informationQuantity required : 1 |
||||||
2 |
FIXED DRIVEN HALF PULLEY "PIAGGIO GENUINE PART" MP3 MAXI 2018> -1A010710- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/2/4/img/92824.jpg)
3 |
829808 - CAGE POULI M27 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/7/3/3/img/92733.jpg)
4 |
82627R - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/7/img/68537.jpg)
5 |
825382 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/8/img/109068.jpg)
6 |
1A001576 - PIVOT More informationQuantity required : 4 |
||||||
|
7 |
1A001577 - ROULEAU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/0/4/img/174604.jpg)
8 |
1A017465 - COMPLETE MOVABLE DRIVEN HALF-PULLEY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/8/img/68528.jpg)
9 |
SEAL RING GASKET- FOR VARIATOR HALF PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 -825239 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/2/img/68802.jpg)
10 |
828984 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/7/img/68527.jpg)
11 |
825237 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/7/0/img/109070.jpg)
12 |
1A001578 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/7/1/img/109071.jpg)
13 |
1A001579 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/7/2/img/109072.jpg)
14 |
1A001580 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/0/5/img/174605.jpg)
15 |
1A017467 - CVT SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/7/4/img/109074.jpg)
16 |
1A001582 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/5/2/0/img/151520.jpg)
17 |
COMPLETE CLUTCH ASSEMBLY "PIAGGIO GENUINE PART" 500 MP3 MAXI 2018> -1A0074965 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/9/img/68539.jpg)
18 |
825385 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/6/6/img/158266.jpg)
19 |
1A011543 - TAMBOUR EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/9/img/69139.jpg)
20 |
840319 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/0/img/69140.jpg)
21 |
840320 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/5/2/img/68652.jpg)
22 |
827116 - ECROU More informationQuantity required : 1 |
