Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

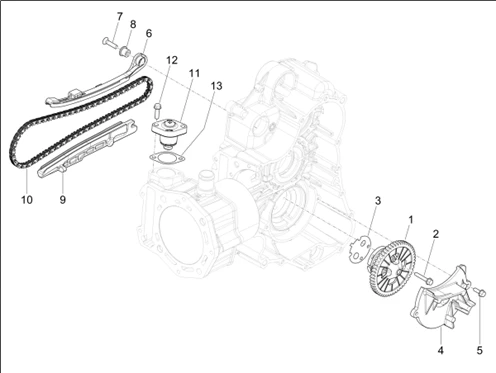

Moteur : 01.18 POMPE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_01.18.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/0/1/img/70601.jpg)
1 |
COMPLETE OIL PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -876225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/8/img/66438.jpg)
2 |
433477 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/1/img/69551.jpg)
3 |
OIL PUMP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -847962 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/2/img/68892.jpg)
4 |
OIL PUMP COVER "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 400-500CC -83064 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
5 |
830061 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/6/9/img/198769.jpg)
6 |
1A020453 - COMPLETE CHAIN TIGHTENING ROD More informationQuantity required : 1 |
||||||
7 |
1A003052 - BOULON M6X25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/6/5/img/68565.jpg)
8 |
825737 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/7/0/img/198770.jpg)
9 |
1A020454 - SLIDING ROD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/7/7/1/img/198771.jpg)
10 |
1A020256 - TIMING CHAIN 108 PITCHES (530CC) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/7/7/3/img/177773.jpg)
11 |
1A018752 - COMPLETE CHAIN TIGHTENER SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
12 |
018639 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/7/7/4/img/177774.jpg)
13 |
1A018560 - CHAIN SUPPORT GASKET More informationQuantity required : 1 |
