Vehicle Exploded View - PIAGGIO MP3 530 HPE RST Exclusive E5 2022 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

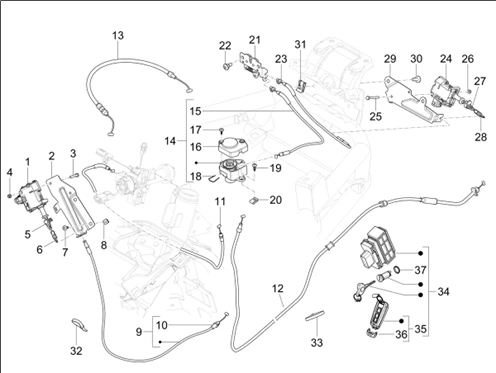

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1170/MP3_530_HPE_RST_Exclusive_E5_2022_(EMEA)_02.46.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.jpg)
1 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
2 |
1B007758 - ACTUATOR SUPPORT PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
3 |
584121 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
4 |
577620 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/8/img/67148.jpg)
5 |
577128 - ACCOUPLEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/0/5/3/img/92053.jpg)
6 |
675783 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
7 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
8 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/0/6/img/198506.jpg)
9 |
CM012871 - FUEL PORT TRANSMISSION More informationQuantity required : 1 |
||||||
|
10 |
140333 - EMBOUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/0/8/img/198508.jpg)
11 |
CM012869 - LOCK PARKING BRAKE TRASMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/8/1/8/img/198818.jpg)
12 |
1C006527 - COMPLETE PARKING BRAKE TRANSMIS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/1/0/img/198510.jpg)
13 |
1C006499 - COMPL. BRAKE TRASMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/1/1/img/198511.jpg)
14 |
1B010271 - OPINING SADDLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/1/2/img/198512.jpg)
15 |
CM012872 - EMERGENCY OPEN TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/2/8/6/img/174286.jpg)
16 |
1B008428 - LOCK PLUG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
17 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
18 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
19 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
20 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/2/img/72942.jpg)
21 |
SADDLE LOCK "PIAGGIO GENUINE PART" MP3, X8, X-EVO, X7, X10, BEVERLY/GILERA NEXUS, FUOCO -CM023701 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
22 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/5/1/3/img/198513.jpg)
23 |
CM012873 - SADDLE OPEN TRANSMISSION More informationQuantity required : 1 |
||||||
|
24 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
|
25 |
584121 - VIS More informationQuantity required : 2 |
||||||
|
26 |
577620 - ECROU More informationQuantity required : 2 |
||||||
|
27 |
577128 - ACCOUPLEMENT More informationQuantity required : 1 |
||||||
|
28 |
1B003298 - RESSORT More informationQuantity required : 1 |
||||||
|
29 |
1B009246 - ACTUATOR SUPPORT PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
30 |
CM179301 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
31 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
32 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
33 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/8/8/5/img/210885.jpg)
34 |
KIT OUVERTURE SANS CLE COMPLET ORIGINE PIAGGIO 400-530 MP3 2022> -1D004578 More informationQuantity required : 1 |
||||||
|
34 |
KIT OUVERTURE SANS CLE COMPLET ORIGINE PIAGGIO 400-530 MP3 2022> -1D004578 More informationQuantity required : 1 |
||||||
|
34 |
KIT OUVERTURE SANS CLE COMPLET ORIGINE PIAGGIO 400-530 MP3 2022> -1D004578 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/0/6/6/4/img/210664.jpg)
35 |
RADIO TRANSMETTEUR KEYLESS ORIGINE PIAGGO 300-400-530 BEVERLY, MP3 2022> -1D004864 More informationQuantity required : 1 |
||||||
|
35 |
RADIO TRANSMETTEUR KEYLESS ORIGINE PIAGGO 300-400-530 BEVERLY, MP3 2022> -1D004864 More informationQuantity required : 1 |
||||||
|
35 |
RADIO TRANSMETTEUR KEYLESS ORIGINE PIAGGO 300-400-530 BEVERLY, MP3 2022> -1D004864 More informationQuantity required : 1 |
||||||
|
36 |
1D004006 - COVER FOR REMOTE CONTROL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
37 |
LOCK GASKET RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298731 More informationQuantity required : 1 |
