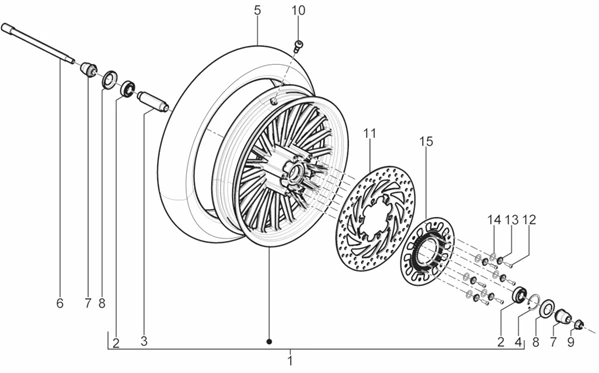

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_04.11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/9/3/img/82193.jpg)
1 |
JANTE/ROUE AVANT ORIGINE PIAGGIO 350 BEVERLY -58622R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/4/8/img/80048.jpg)
2 |
ROULEMENT (20X42X12) ORIGINE PIAGGIO COMMUN A LA GAMME -564342 Plus d'informationsQuantité requise : 2 |
||||||
3 |
665832 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/4/img/63824.jpg)
4 |
CLIPS/CIRCLIPS ORIGINE PIAGGIO COMMUN A LA GAMME -006642 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
1C002115 - PNEU MICHELIN 110/70-16 52S CITY GRIP Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/7/img/82467.jpg)
6 |
AXE DE ROUE AVANT ORIGINE PIAGGIO 125-300-350-400-500 BEVERLY -5991026 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
651269 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
649548 - RONDELLE D'AR Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
9 |
ECROU (M12) AXE DE ROUE ORIGINE PIAGGIO COMMUN A LA GAMME -271740 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
10 |
VALVE TUBELESS ORIGINE PIAGGIO COMMUN A LA GAMME -597679 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/7/9/img/140379.jpg)
11 |
DISQUE DE FREIN AVANT ORIGINE PIAGGIO 125-300-350 BEVERLY -58546R5 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/6/img/66136.jpg)
12 |
VIS BTR TETE BOMBEE (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -274370 Plus d'informationsQuantité requise : 6 |
||||||
|
13 |
651440 - BAGUE Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/9/img/71479.jpg)
14 |
RONDELLE RESSORT (D12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121641 Plus d'informationsQuantité requise : 6 |
||||||
|
15 |
667040T5 - CODEUR COMPTEUR KM Plus d'informationsQuantité requise : 1 |
