Eclatés de véhicule - PIAGGIO BEVERLY 350 4T 4V ie E3 Sport Touring 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

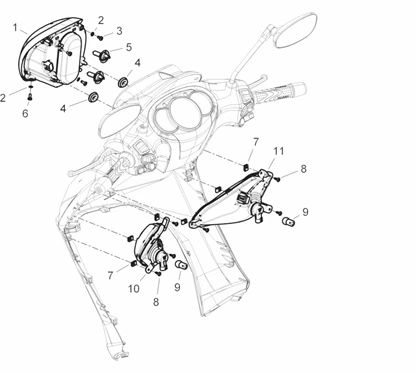

Installation électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_06.03.PNG)
1 |
642894 - PROJECTEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
2 |
RONDELLE (5,3X10X0,5) ORIGINE PIAGGIO COMMUN A LA GAMME -006975 Plus d'informationsQuantité requise : 4 |
||||||
|
3 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
4 |
TAMPON/SILENCBLOC DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -1B000888 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/7/2/img/66272.jpg)
5 |
AMPOULE/LAMPE 12V 55W H7 ORIGINE PIAGGIO COMMUN A LA GAMME -294353 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
6 |
VIS CRUCIFORME (5X12) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -015585 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
7 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
8 |
VIS TORX (4,2X16) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178601 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
9 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE ORIGINE PIAGGIO COMMUN A LA GAMME -584332 Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
642664 - CLIGNOTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
642665 - CLIGNOTEUR Plus d'informationsQuantité requise : 1 |
