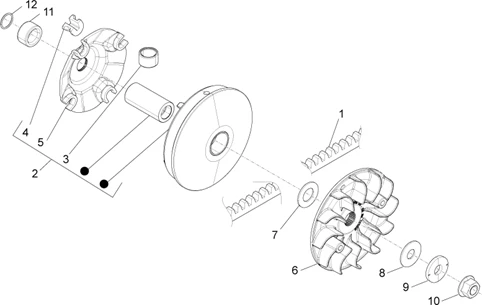

Moteur : 01.13 POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_01.13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/6/1/9/img/157619.jpg)
0 |
KIT TRANSMISSION (COURROIE, GALETS, GUIDES) ORIGINE PIAGGIO 350 MP3 2018>, X10 2012>, BEVERLY 2012> -1R000448 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/4/5/img/92845.jpg)
1 |
COURROIE MAXISCOOTER ORIGINE PIAGGIO 350 MP3 2018>, X10 2012>, 350 BEVERLY 2012> -83025R Plus d'informationsQuantité requise : 1 |
||||||
2 |
1A007731 - DEMI POULIE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/6/1/img/94561.jpg)
3 |
GALET/ROULEAU ORIGINE PIAGGIO 350 MP3 2018>, 350 BEVERLY 2012>, 350 X10 2012> (VENDU A L'UNITE) -B014273 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/8/8/img/94588.jpg)
4 |
GUIDE/PATIN DE VARIATEUR ORIGINE PIAGGIO 350-400 MP3 2018>, X10, BEVERLY 2012> -B014584 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/9/3/img/94593.jpg)
5 |
FLASQUE A ROULLEAUX DE POULIE MOTRICE ORIGINE PIAGGIO 350-400 BEVERLY, MP3 350-400 2013> -B014703 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/0/8/img/94508.jpg)
6 |
FLASQUE FIXE DE POULIE MOTRICE ORIGINE PIAGGIO 350 MP3, BEVERLY, X10 -B013311 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/9/3/img/70693.jpg)
7 |
RONDELLE PLATE ORIGINE PIAGGIO COMMUN A LA GAMME -878810 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
840655 - RONDELLE 1 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
B015049 - RESSORT A GODET Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/5/2/img/68652.jpg)
10 |
ECROU M14 X 1,5 ORIGINE PIAGGIO COMMUN A LA GAMME -827116 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
878948 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
878949 - BAGUE Plus d'informationsQuantité requise : 1 |
