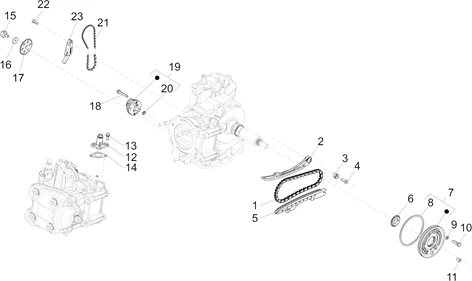

Moteur : 01.18 POMPE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_01.18.PNG)
1 |
82992R - CHAINE/COURROIE DE DISTRIBUTION Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
B015195 - TENDEUR DE CHAINE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/6/5/img/68565.jpg)
3 |
ENTRETOISE DE TENDEUR DE CHAINE DE DISTRIBUTION ORIGINE PIAGGIO 350-400-500-530 MP3, BEVERLY, X9 -825737 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/6/img/70516.jpg)
4 |
VIS BTR TETE FRAISEE (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -874037 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
880645 - TAQUET CV Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/0/img/68700_20251124134345_20251124143304.JPG)
6 |
PIGNON DE CHAINE DE DISTRIBUTION ORIGINE PIAGGIO COMMUN A LA GAMME -82782R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/8/1/img/94681.jpg)
7 |
COUVERCLE DE DISTRIBUTION AVEC JOINT SPI ORIGINE PIAGGIO 350-400 MP3, BEVERLY, X10 -B0161755 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
B016176 - JOINT Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
879027 - RONDELLE Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
10 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
11 |
PION DE CENTRAGE (7,5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -277916 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/7/9/img/204079.jpg)
12 |
TENDEUR DE CHAINE DE DISTRIBUTION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 A 500 CC/MOTOS APRILIA -82650R Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
TENDEUR DE CHAINE DE DISTRIBUTION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 A 500 CC/MOTOS APRILIA -82650R Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
14 |
JOINT DE TENDEUR CHAINE DE DISTRIBUTION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -847928 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
878753 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
16 |
RONDELLE RESSORT (6.4X20X2) ORIGINE PIAGGIO COMMUN A LA GAMME -436695 Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
B013970 - COURONNE POMPE A EAU Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
829593 - BOULON Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
83085R - POMPE HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
871301 - CIRCLIPS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/6/2/img/68962.jpg)
21 |
CHAINE DE DISTRIBUTION ORIGINE PIAGGIO 350-400 MP3, BEVERLY, X10 2012>/GILERA 800 GP/APRILIA 850 SRV, MANA -831333 Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
873102 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
23 |
B015581 - DOIGT Plus d'informationsQuantité requise : 1 |
