Eclatés de véhicule - PIAGGIO BEVERLY 350 4T 4V ie E3 Sport Touring 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

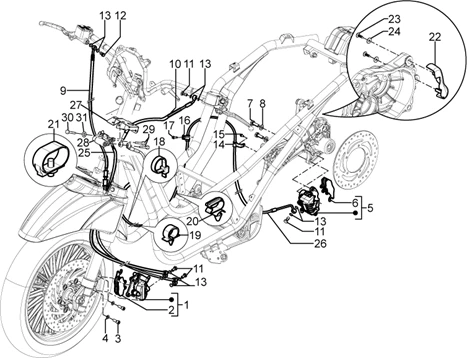

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_05.01.PNG)
1 |
CM085601 - ETRIER DE FREIN Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/0/9/img/90109.jpg)
2 |
PLAQUETTE DE FREIN AVANT ORIGINE PIAGGIO 350 BEVERLY -666935 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
651297 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
4 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/5/7/1/img/95571.jpg)
5 |
ETRIER FREIN ARRIERE HENG-TONG ORIGINE PIAGGIO 125-300-350 BEVERLY -CM068312 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/8/8/img/68388.jpg)
6 |
PLAQUETTE DE FREIN ORIGINE PIAGGIO 125-350-500 X10 AR, 125-300-350-400 BEVERLY AR, 125-300 MP3 YOURBAN AR, 300 MP3 2015> AR, 350 MP3 2018> AR, 400 MP3 2020>, 530 AR -665842 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/7/8/img/89978.jpg)
7 |
VIS TH (10X30) ORIGINE PIAGGIOCOMMUN A LA GAMME -665983 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
8 |
RONDELLE EVENTAIL (10,5) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -012535 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/0/2/img/90102.jpg)
9 |
DURITE/FLEXIBLE/TUYAU DE FREIN AVANT ORIGINE PIAGGIO 350 BEVERLY 2013>2014 -666828 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
666648 - TUYAU FREIN POMPE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
11 |
VIS BANJO POUR FREIN ORIGINE PIAGGIO COMMUN A LA GAMME -265451 Plus d'informationsQuantité requise : 3 |
||||||
|
12 |
666294 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
13 |
JOINT CUIVRE (10X16X1) ETRIER DE FREIN ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -127927 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/7/img/69377.jpg)
14 |
COLLIER FIXATION CABLAGE OU DURITE OUVERT ORIGINE PIAGGIO COMMUN A LA GAMME -845978 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
15 |
VIS BRIDE TH (6X10) ORIGINE PIAGGIO COMMUN A LA GAMME -969296 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
217280 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
17 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
18 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,8X270MM ORIGINE PIAGGIO COMMUN A LA GAMME -257134 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
19 |
CLIPS RESSORT (D17) ORIGINE PIAGGIO COMMUN A LA GAMME -231590 Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
217280 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
666047 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
672204 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
23 |
VIS TORX (4,2X16) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178601 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
24 |
RONDELLE PLATE (4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -013763 Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
666649 - TUYAU FREIN Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
666650 - TUYAU FREIN ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
27 |
666940 - PATTES Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/8/4/1/img/95841.jpg)
28 |
VALVE/SOUPAPE REGLAGE PRESSION FREIN ORIGINE PIAGGIO 125-350-500 X10 2012>, 350 BEVERLY 2013>2014 -CM086101 Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
597633 - RACCORD TUYAU DE FREIN M27 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/3/img/68493.jpg)
30 |
VIS BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -709099 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
31 |
RONDELLE ELASTIQUE (6.4X12X0.5) ORIGINE PIAGGIO COMMUN A LA GAMME -006976 Plus d'informationsQuantité requise : 2 |
