Eclatés de véhicule - PIAGGIO BEVERLY 350 4T 4V ie E3 Sport Touring 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

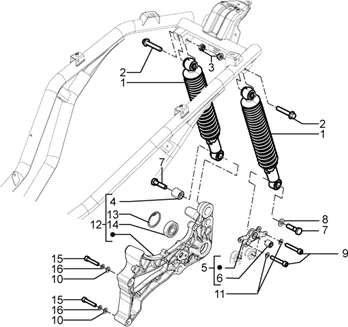

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_04.10.PNG)
1 |
AMORTISSEUR ARRIERE ORIGINE PIAGGIO 350 BEVERLY -58613R Plus d'informationsQuantité requise : 2 |
||||||
|
1 |
58583R - AMORTISSEUR ARRIERE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/9/img/66069.jpg)
2 |
VIS BRIDE TH (10X55) FIXATION AMORTISSEUR ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME -268158 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
3 |
ECROU AUTOBLOQUANT/NYLSTOP (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -002440 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
880343 - SILENT BLOC Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
666678 - SUPPORT AMORTISSEUR Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
880343 - SILENT BLOC Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
030097 - BOULON S03009700 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
8 |
RONDELLE EVENTAIL (10,5) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -012535 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
9 |
VIS BTR (8X50) ORIGINE PIAGGIO COMMUN A LA GAMME -844483 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
10 |
RONDELLE PLATE (8,4X15X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -003058 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
11 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047 Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
880389 - BRAS SUSPENSION DRT. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
13 |
CLIPS/CIRCLIPS (47X50.5X1.75) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -006647 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/6/img/68546.jpg)
14 |
ROULEMENT (17X47X14) DE BRAS DE SUSPENSION ARRIERE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -82545R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/4/img/69354.jpg)
15 |
VIS BTR (8X65) FIXATION ECHAPPEMENT SCOOT ORIGINE PIAGGIO 50 FLY, LIBERTY, TYPHOON, ZIP/GILERA 50 STALKER, DNA -845590 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
16 |
RONDELLE (8,2X16X2,2) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -834187 Plus d'informationsQuantité requise : 2 |
