Eclatés de véhicule - PIAGGIO BEVERLY 350 4T 4V ie E3 Sport Touring 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

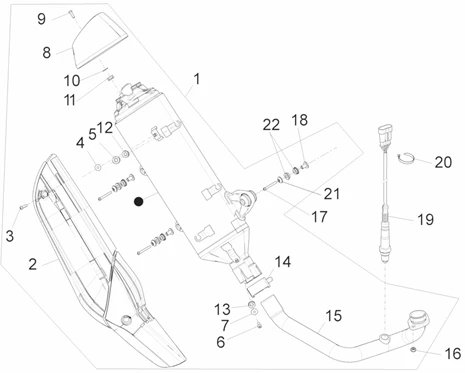

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_01.42.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/4/1/9/img/93419.jpg)
1 |
POT ECHAPPEMENT ORIGINE PIAGGIO 350 BEVERLY 2013>2014 -8807205 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/7/9/img/146279.jpg)
2 |
PROTECTION/TOLE DE POT ECHAPPEMENT ORIGINE PIAGGIO 350 BEVERLY 2012> -1A009013 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
3 |
VIS BTR TETE BOMBEE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152267 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
VIS BTR TETE BOMBEE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152267 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/7/img/69207.jpg)
4 |
RONDELLE PLATE (6X18) ORIGINE PIAGGIO COMMUN A LA GAMME -841821 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/4/4/img/66744.jpg)
5 |
PASSE CABLE (8X10X16) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -487665 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/2/8/img/70728.jpg)
6 |
VIS TORX (5X16) TETE BOMBEE ORIGINE PIAGGIO COMMUN A LA GAMME -880285 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/6/img/68676.jpg)
7 |
RONDELLE PLATE (5X16) TOLE ECHAPPEMENT ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -827526 Plus d'informationsQuantité requise : 1 |
||||||
8 |
880515 - GRILLE ECHAPPEMENT Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
VIS BTR TETE BOMBEE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152267 Plus d'informationsQuantité requise : 5 |
||||||
|
9 |
VIS BTR TETE BOMBEE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152267 Plus d'informationsQuantité requise : 5 |
||||||
|
10 |
RONDELLE PLATE (6X18) ORIGINE PIAGGIO COMMUN A LA GAMME -841821 Plus d'informationsQuantité requise : 5 |
||||||
|
11 |
PASSE CABLE (8X10X16) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -487665 Plus d'informationsQuantité requise : 5 |
||||||
|
12 |
B013302 - PASSECABLES Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/5/8/img/70558.jpg)
13 |
JOINT ECHAPPEMENT ORIGINE PIAGGIO 350 BEVERLY, X10, 400-500 MP3, BEVERLY, X-EVO/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV, MANA/GILERA 500 NEXUS, FUOCO, 850 GP -8749465 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/5/9/img/70559.jpg)
14 |
COLLIER ECHAPPEMENT ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTEUR 350-400-500/MOTO-GUZZI V7, V9/GILERA GP 800/APRILIA 850 SRV -874957 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
TUBE ECHAPPEMENT ORIGINE PIAGGIO 350 MP3, BEVERLY -1A0075985 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
TUBE ECHAPPEMENT ORIGINE PIAGGIO 350 MP3, BEVERLY -1A0075985 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/9/img/65379.jpg)
16 |
ECROU BRIDE M8 FIXATION ECHAPPEMENT ORIGINE PIAGGIO COMMUN ALA GAMME -015341 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/9/3/7/img/92937.jpg)
17 |
VIS TORX (8X65) ORIGINE PIAGGIO COMMUN A LA GAMME -841023 Plus d'informationsQuantité requise : 3 |
||||||
|
18 |
880296 - RONDELLE Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/5/5/img/67855.jpg)
19 |
SONDA LAMBDA ORIGINE PIAGGIO 125-300-350-400-500 MP3, BEVERLY, 125 YOURBAN, 125 VESPA GTS, 125-300 X10, X7, 400 X8, X-EVO/GILERA 125-300-500 NEXUS, 500 FUOCO/APRILIA 300-400-500 ATLANTIC -6398066 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
20 |
CLIPS CONNECTEUR ORIGINE PIAGGIO COMMUN A LA GAMME -639560 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/6/7/img/94667.jpg)
21 |
B015885 - ENTRETOISE Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/3/7/1/img/93371.JPG)
22 |
ENTRETOISE DE PROTECTION/TOLE DE POT ECHAPPEMENT ORIGINE PIAGGIO 350-400 MP3 2018> / 350 BEVERLY 2013> -880295 Plus d'informationsQuantité requise : 6 |
