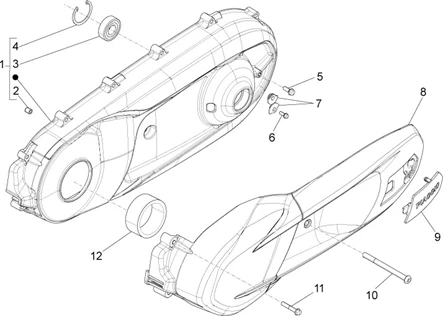

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_01.15.PNG)
1 |
B0159005 - COUVERCLE TRANSMISSION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
2 |
PION DE CENTRAGE (7,5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -277916 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/8/img/69138.jpg)
3 |
ROULEMENT (17X40X12) COUVERCLE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 350-400-500 -840277 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/9/img/68559.jpg)
4 |
CLIPS/CIRCLIPS (35.7X43.5X1.75) ORIGINE PIAGGIO COMMUN A LA GAMME -825667 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
5 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -B016792 Plus d'informationsQuantité requise : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
6 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -B016777 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/7/8/img/70378.jpg)
7 |
TAMPON/INSERT ARRET FIXATION COUVERCLE TRANMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -871458 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/6/1/4/img/140614.jpg)
8 |
INSONORISANT DE COUVERCLE TRANSMISSION ORIGINE PIAGGIO 350 MP3 2018>, BEVERLY 2012>, X10 2012> -B013999 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/6/5/6/img/139656.jpg)
9 |
LOGO "PIAGGIO" DE COUVERCLE DE TRANSMISSION ORIGINE PIAGGIO 350 MP3, BEVERLY, X10 -1A007154 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
B014475 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
11 |
VIS BRIDE TH (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -414838 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/3/6/5/img/93365.jpg)
12 |
ELEMENT FILTRE TRANSMISSION ORIGINE PIAGGIO 350 MP3, X10, BEVERLY -880148 Plus d'informationsQuantité requise : 1 |
