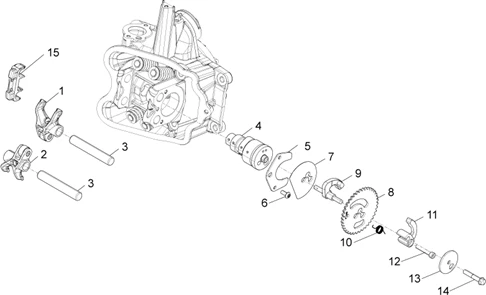

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_01.11.PNG)
1 |
880631 - BALANCIER ADMISSION Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
880633 - BALANCIER ADMISSION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/4/1/8/img/93418.jpg)
3 |
AXE CULBUTEUR ORIGINE PIAGGIO 350-400 BEVERLY, MP3 -880715 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
1A000595R5 - ARBRE A CAMES Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/4/1/5/img/93415.jpg)
5 |
PLAQUE/TOLE ARBRE A CAMES ORIGINE PIAGGIO 350-400 BEVERLY, MP3 -880688 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/8/img/72648.jpg)
6 |
VIS TORX (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -B014598 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
880991 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/0/5/img/94605.jpg)
8 |
COURONNE DISTRIBUTION ORIGINE PIAGGIO 300-400 BEVERLY, MP3, GTS 2019> -B014970 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
B0149715 - MASSELOTTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/0/3/img/94603.jpg)
10 |
RESSORT MASSE DE DECOMPRESSEUR ORIGINE PIAGGIO 300-350-400 BEVERLY, MP3, GTS 2017> B014925 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/4/3/2/img/93432.jpg)
11 |
CONTRE POIDS DECOMPRESSEUR ORIGINE PIAGGIO 300 BEVERLY, MP3, GTS 2019> -880893 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/6/img/127166.jpg)
12 |
VIS BTR (5X30) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003053 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/3/6/img/94536.jpg)
13 |
RONDELLE DE BALANCIER ORIGINE PIAGGIO 250-300-350-400 2007> -B013841 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
14 |
VIS BRIDE TH (6X35) ORIGINE PIAGGIO COMMUN A LA GAMME -414838 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/3/9/img/94639.jpg)
15 |
ARRET DE CULBUTEUR ORIGINE PIAGGIO 350-400 BEVERLY, MP3 2013> -B015423 Plus d'informationsQuantité requise : 1 |
