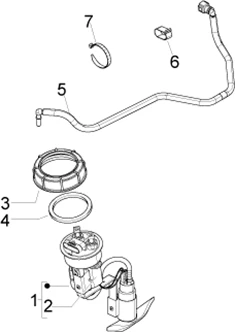

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_02.53.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/7/2/img/86272.jpg)
1 |
POMPE A ESSENCE ELECTRIQUE ORIGINE PIAGGIO 125-300 BEVERLY 2010>, 350 BEVERLY 2012> -641892 Plus d'informationsQuantité requise : 1 |
||||||
2 |
639357 - FILTRE POMPE ELECTRIQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
3 |
ECROU/BAGUE POMPE ORIGINE PIAGGIO COMMUN A LA GAMME -576546 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
4 |
JOINT DE JAUGE A ESSENCE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -656003 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
672623 - TUYAU CARBURANT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
6 |
COLIIER PINCE ORIGINE PIAGGIO COMMUN A LA GAMME -CM006905 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
675510 - COLLIER Plus d'informationsQuantité requise : 2 |
