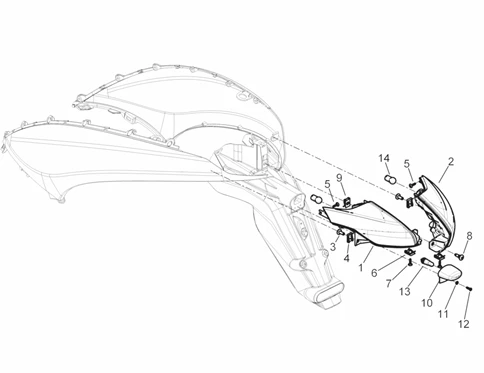

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_06.04.PNG)
1 |
641580 - CLIGNOTANT AR GAU. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
641581 - CLIGNOTANT AR DR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
3 |
VIS TORX (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -CM179301 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
5 |
VIS TORX (4X16) TARAUD CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM180701 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
6 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
7 |
VIS TORX (4,2X16) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178601 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
8 |
VIS TORX (6X22) CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM179201 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/0/9/img/146209.jpg)
10 |
FEU ECLAIRAGE PLAQUE DE POLICE PIAGGIO 125 FLY, LIBERTY, 125-250-300-350-400-500 BEVERLY/GILERA 125-250-300-500 NEXUS -58235R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
11 |
RONDELLE PLATE (4.3X8X0.5) ORIGINE PIAGGIO COMMUN A LA GAMME -003054 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
12 |
VIS AUTOTARAUDEUSE (4X16) ORIGINE PIAGGIO COMMUN A LA GAMME -267115 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
13 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
14 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE ORIGINE PIAGGIO COMMUN A LA GAMME -584332 Plus d'informationsQuantité requise : 2 |
