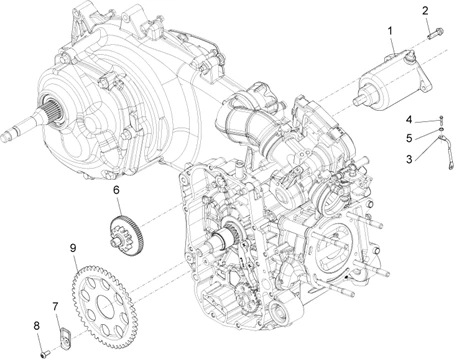

Moteur : 01.20 DÉMARRAGE - DÉMARRAGE ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_01.20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/2/0/6/img/140206.jpg)
1 |
DEMARREUR ORIGINE PIAGGIO 350 MP3 2018>, BEVERLY 2012>, X10 2012> -1D000684R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
2 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME/KICK DERBI 50 SENDA -B016774 Plus d'informationsQuantité requise : 2 |
||||||
3 |
CABLE ALIMENTATION DEMARREUR ORIGINE PIAGGIO BEVERLY 300-350 2012>2017 -642545 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
4 |
VIS BRIDE TH (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -484123 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
224664 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
877886 - ENSAMBLE RENVOI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/4/4/img/69044.jpg)
7 |
PLAQUETTE DE MAINTIEN PIGNON DE DEMARREUR ORIGINE PIAGGIO 350-400 BEVERLY, MP3 2018> -833011 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/8/img/72648.jpg)
8 |
VIS TORX (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -B014598 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/6/img/68666.jpg)
9 |
COURONNE DE DEMARREUR ORIGINE PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, X7,125-250 X8, X9, X-EVO /GILERA 125-250-300-500 NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO -82737R Plus d'informationsQuantité requise : 1 |
