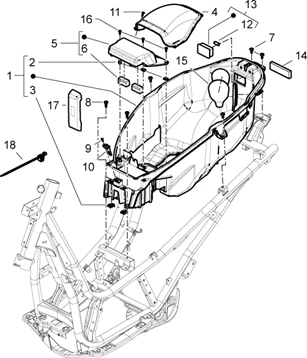

Châssis - parties plastiques - carrosseries : 02.34 LOGEMENT CASQUE - DESSOUS DE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_02.34.PNG)
1 |
COFFRE A CASQUE ORIGINE PIAGGIO BEVERLY 350 2013>2014 -1B001126- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
2 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
1B001119 - ABATTANT INIEZ * Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
672637 - COUVERCLE BATTERIE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/0/img/66300.jpg)
6 |
TAMPON DE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME -297446 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
7 |
VIS TORX (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -CM179301 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
8 |
VIS TORX (6X22) CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM179201 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
9 |
VIS AUTOTARAUDEUSE (3,5X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -018536 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/1/img/66011.jpg)
10 |
INTERUPTEUR ECLAIRAGE COFFRE A CASQUE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -255323 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
11 |
VIS TORX (4,2X13) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178603 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/0/img/65660.jpg)
12 |
AMPOULE/LAMPE 12V 5W NAVETTE ORIGINE PIAGGIO COMMUN A LA GAMME -071633 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/1/img/66261.jpg)
13 |
ECLAIRAGE/PLAFONNIER COFFRE ORIGINE PIAGGIO COMMUN A LA GAMME -293154 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
672240 - SILENTBLOC Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/7/6/img/89676.jpg)
15 |
BOUCHON PLASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -657135 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
16 |
VIS TORX (4,2X16) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178601 Plus d'informationsQuantité requise : 3 |
||||||
|
17 |
672957 - ABATTANT OUTILS Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
657229 - COLLIER Plus d'informationsQuantité requise : 1 |
