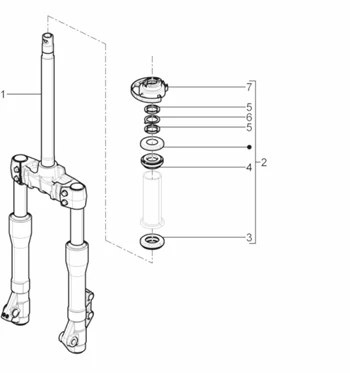

Suspensions - roues : 04.02 FOURCHE/TUBE DIRECTION - ENSEMBLE BUTÉE DIR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_04.02.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/9/5/7/img/75957.jpg)
1 |
FOURCHE AVANT ORIGINE PIAGGIO 125-300-350 BEVERLY 2010> -1C000190R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/7/9/img/82179.jpg)
1 |
FOURCHE ORIGINE PIAGGIO 350 BEVERLY SPORT TOURING 2013>2014 -58584R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/5/9/img/67459.jpg)
2 |
JEU DE DIRECTION ORIGINE PIAGGIO 125-200-300-350-400 BEVERLY, CARNABY -6008726 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/1/8/img/87018.jpg)
3 |
ROULEMENT DE DIRECTION INFERIEUR ORIGINE PIAGGIO 50-125 ZIP, FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S, 125-250-300-400-500 MP3 -65007545 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
ROULEMENT DE DIRECTION INFERIEUR ORIGINE PIAGGIO 50-125 ZIP, FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S, 125-250-300-400-500 MP3 -65007545 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/5/5/img/67455.jpg)
4 |
JEU DE DIRECTION SUPERIEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 A 500 -60075045 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/9/img/65339.jpg)
5 |
ECROU SERRAGE DIRECTION ORIGINE PIAGGIO SUR L'ENSEMBLE DE LA GAMME MAXISCOOTER -0111094 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/4/img/67264.jpg)
6 |
RONDELLE DE DIRECTION ORIGINE PIAGGIO COMMUN A LA GAMME -582787 Plus d'informationsQuantité requise : 1 |
||||||
7 |
666439 - COLLIER PROTECTION Plus d'informationsQuantité requise : 1 |
