Eclatés de véhicule - PIAGGIO BEVERLY 350 4T 4V ie E3 Sport Touring 2013-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

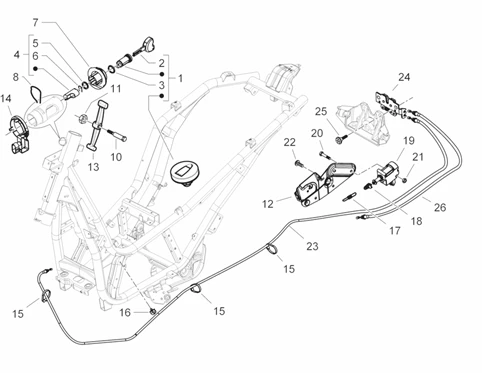

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_02.46.PNG)
1 |
JEU DE CLE ORIGINE PIAGGIO 125-300-350 BEVERLY -674507- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/1/6/8/img/89168.jpg)
2 |
EBAUCHE DE CLE ORIGINE PIAGGIO 125 MP3 2011>, 250-400 MP3 2008>, 300-500 MP3 2010>, 350 MP3 2018>, 125-300-350 BEVERLY 2010> -656264 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
3 |
JOINT DE SERRURE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -298731 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/6/img/67166.jpg)
4 |
BLOC DE SERRURE ORIGINE PIAGGIO X7, X9, X10, BEVERLY, CARNABY/APRILIA SCARABEO -577816 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
5 |
RONDELLE DE BLOC DIRECTION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -298594 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
6 |
RESSORT D'ARRET SERRRURE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -298838 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/4/img/66304.jpg)
7 |
CORPS DE SERRURE ORIGINE PIAGGIO 50 ZIP, NRG, TYPHOON, 50-125 VESPA LX, LIBERTY, FLY, 125-250-400 X-EVO, X8, BEVERLY, 125-250-300 CARNABY, X7, VESPA GTS, X10, 125-250-500 X9 -1B002607 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
8 |
RESSORT D'ARRET DE CONTACTEUR A CLE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -253937 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
10 |
VIS SPECIALE DOIGT DE SERRURE ORIGINE PIAGGIO COMMUN A LA GAMME -299972 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
11 |
ECROU AUTOBLOQUANT/NYLSTOP (M4X70) ORIGINE PIAGGIO COMMUN A LA GAMME -577620 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
1B007758 ACTUATOR SUPPORT PLATE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
1B007758 ACTUATOR SUPPORT PLATE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
656855 - LEVIER SERRURE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/0/img/67790.jpg)
14 |
ANTENNE ORIGINE PIAGGIO 125-300 MP3, YOURBAN, BEVERLY, VESPA GTS, X7, 125 VESPA LX, PRIMAVERA, LIBERTY, FLY/GILERA 125-250-300 NEXUS/APRILIA 125-300 SR-MAX -1D004058R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
15 |
COLLIER DE SERRAGE NYLON TYPE RILSAN 4,8X270MM ORIGINE PIAGGIO COMMUN A LA GAMME -257134 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
16 |
CLIPS RESSORT (D17) ORIGINE PIAGGIO COMMUN A LA GAMME -231590 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/0/5/3/img/92053.jpg)
17 |
RESSORT ACTIONNEUR SERRURE DE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME -675783 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/8/img/67148.jpg)
18 |
JOINT DE CABLE/TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME -577128 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.jpg)
19 |
MOTEUR OUVERTURE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME -1D002276R Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
MOTEUR OUVERTURE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME -1D002276R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.jpg)
20 |
VIS TH (4X35) ORIGINE PIAGGIO COMMUN A LA GAMME -584121 Plus d'informationsQuantité requise : 2 |
||||||
|
21 |
ECROU AUTOBLOQUANT/NYLSTOP (M4X70) ORIGINE PIAGGIO COMMUN A LA GAMME -577620 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
22 |
VIS TORX (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -CM179301 Plus d'informationsQuantité requise : 2 |
||||||
|
23 |
CM012841 - TRANSMISSION SELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/2/img/72942.jpg)
24 |
SERRURE DE SELLE MAXISCOOTER ORIGINE PIAGGIO MP3, X8, X-EVO, X7, X10, BEVERLY/GILERA NEXUS, FUOCO -CM023701 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
25 |
VIS TORX (6X16) AVEC EPAULEMENT ORIGINE PIAGGIO COMMUN A LA GAMME -CM179202 Plus d'informationsQuantité requise : 2 |
||||||
|
26 |
CM012842 - TRANSMISSION SELLE Plus d'informationsQuantité requise : 1 |
