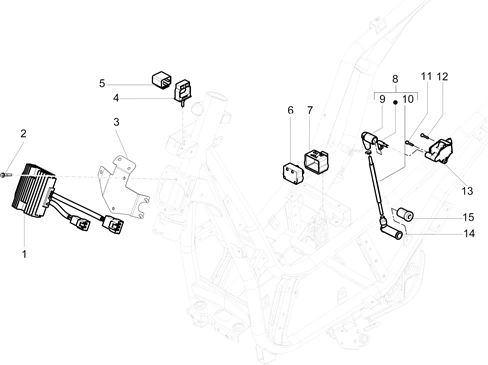

Installation électrique : 06.06 RÉGULATEURS DE TENSION - CENTRALES ELECTRONIQUES - BOBINE H.T.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_06.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/1/img/67941.jpg)
1 |
REGULATEUR ORIGINE PIAGGIO 125-300 X7 2009>, 125-350-500 X10 2012>, 300 BEVERLY 2016>,350 BEVERLY 2013>,300 MP3 2011>, 500 MP3 2014>, BEVERLY 2013>, 500 MP3 2014>/APRILIA 850 SRV 2012> -641711 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
2 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -B016792 Plus d'informationsQuantité requise : 2 |
||||||
3 |
672955 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/6/img/66246.jpg)
4 |
SUPPORT ELASTIQUE CENTRALE ORIGINE PIAGGIO COMMUN A LA GAMME -291017 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/6/0/8/8/img/206088.jpg)
5 |
CENTRALE CLIGNOTANTE 2 BROCHES ORIGINE PIAGGIO COMMUN A LA GAMME -1D004175R Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CENTRALE CLIGNOTANTE 2 BROCHES ORIGINE PIAGGIO COMMUN A LA GAMME -1D004175R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/1/img/67301.jpg)
6 |
SENSOR DE CHUTE/ CAPEUR ANTI-BASCULEMEMENT ORIGINE PIAGGIO COMMUN A LA GAMME -584509 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
641915 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
BORNE HT ORIGINE PIAGGIO COMMUN A LA GAMME -643001 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/0/3/img/67903.jpg)
9 |
ISOLANT BOBINE HAUTE TENSION ORIGINE PIAGGIO COMMUN A LA GAMME -641040 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
10 |
CABLE HAUTE TENSION ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -080341 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
VIS BRIDE TH (6X30) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -B016792 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/8/img/69758.jpg)
12 |
VIS BRIDE ORIGINE PIAGGIO COMMUN A LA GAMME -857429 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/7/img/67947.jpg)
13 |
BOBINE ALLUMAGE ORIGINE PIAGGIO 125 FLY3 SOUPAPES, LIBERTY 3 SOUPAPES, VESPA LX 3 SOUPAPES, 125-350 YOURBAN, BEVERLY, X-10, V7, V9, V85 2017> -641901 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/4/img/65854.jpg)
14 |
ANTIPARASITE ORIGINE PIAGGIO 350 BEVERLY, X10 2012> -1D000275 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
642621 - COLLIER DE PROTECTION BOUGIE Plus d'informationsQuantité requise : 1 |
