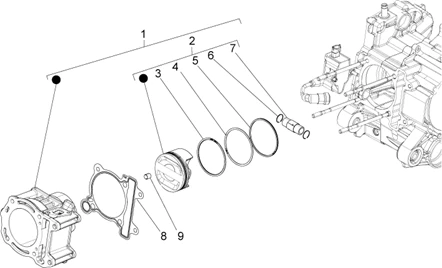

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_01.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/5/9/img/72659.jpg)
1 |
CYLINDRE PISTON ORIGINE PIAGGIO 350 MP3, BEVERLY, X10 -1A013567 Plus d'informationsQuantité requise : 1 |
||||||
2 |
CYLINDRE PISTON ORIGINE PIAGGIO 350 MP3, BEVERLY, X10 CAT M (DATE DEBUT 03/07/2018) -1A0135680M Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A0135680N - ESEMBLE PISTON-AXE DE PISTON Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A0135680O - ESEMBLE PISTON-AXE DE PISTON Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A0135680P - ESEMBLE PISTON-AXE DE PISTON Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
CYLINDRE PISTON ORIGINE PIAGGIO 350 MP3, BEVERLY, X10 CAT M (DATE DEBUT 03/07/2018) -1A0135680M Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A0135680N - ESEMBLE PISTON-AXE DE PISTON Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
SEGMENT DE FEU ORIGINE PIAGGIO 350 MP3, X10, BEVERLY -B015279 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/2/9/img/94629.jpg)
4 |
SEGMENT INTERMEDIAIRE ORIGINE PIAGGIO 350 MP3, X10, BEVERLY -B015280 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/3/0/img/94630.jpg)
5 |
SEGMENT RACLEUR ORIGINE PIAGGIO 350 MP3 2018>, X10, BEVERLY 2012> -B015281 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/3/1/4/img/93314.JPG)
6 |
CIRCLIPS AXE DE PISTON ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME 350/400 BEVERLY ,MP3,X10 -878897 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
878896 - AXE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
JOINT EMBASE DE CYLINDRE (0,20MM) ORIGINE PIAGGIO 350 MP3, BEVERLY, X10 -1A000727 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/2/7/img/146227.jpg)
8 |
JOINT EMBASE DE CYLINDRE (0,30MM) ORIGINE PIAGGIO 350 MP3, BEVERLY, X10 -1A000728 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/2/2/8/img/146228.jpg)
8 |
JOINT EMBASE DE CYLINDRE (0,40MM) ORIGINE PIAGGIO 350 MP3, BEVERLY, X10 -1A000729 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/6/img/66476.jpg)
9 |
PION DE CENTRAGE N-2 ORIGINE PIAGGIO COMMUN A LA GAMME -435571 Plus d'informationsQuantité requise : 4 |
