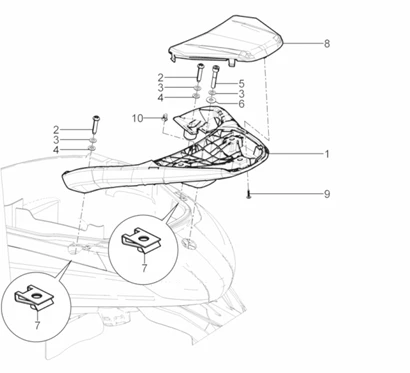

Châssis - parties plastiques - carrosseries : 02.44 PORTE-BAGAGES ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_02.44.PNG)
1 |
656801 - PORTE PAQUET Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/5/2/6/img/89526.jpg)
1 |
PORTE BAGAGE ARRIERE ORIGINE PIAGGIO 350 BEVERLY 2013>2014 -65680100H3 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/5/9/5/img/89595.jpg)
2 |
VIS TORX (8X) ORIGINE PIAGGIO COMMUN A LA GAMME -656894 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
3 |
RONDELLE EVENTAIL ( 8.3X14) ORIGINE PIAGGIO COMMUN A LA GAMME -012540 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
4 |
RONDELLE PLATE (8,4X15X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -003058 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/3/img/68593.jpg)
5 |
VIS BTR (8X45) ORIGINE PIAGGIO COMMUN A LA GAMME -826298 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/7/0/img/73670.jpg)
6 |
RONDELLE PLATE (8.4X20X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -006032 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/4/img/67114.jpg)
7 |
ECROU TOLE (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -575268 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/1/9/img/140019.jpg)
8 |
COUVERCLE COUVRE PORTE BAGAGE ORIGINE PIAGGIO 125-300-350 BEVERLY 2010>2020 -1B0037430000C Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/9/img/73359.jpg)
9 |
VIS TORX (4.2X21.5) TARAUD DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178604 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
10 |
AGRAPHE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -D9004468091 Plus d'informationsQuantité requise : 1 |
