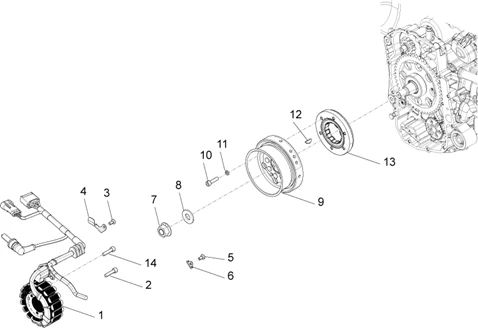

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/48/Beverly_350_4T_4V_ie_E3_Sport_Touring_2013-2014_01.21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/2/3/img/81823.jpg)
1 |
STATOR MAXISCOOTER ORIGINE PIAGGIO 350 MP3 2018>, 350 BEVERLY 2012>, 350 X10 2012> -58281R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/0/img/65440.jpg)
2 |
VIS BTR (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -018553 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
3 |
VIS CRUCIFORME (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003109 Plus d'informationsQuantité requise : 2 |
||||||
4 |
877649 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
880729 - PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/5/2/img/68652.jpg)
7 |
ECROU M14 X 1,5 ORIGINE PIAGGIO COMMUN A LA GAMME -827116 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
825725 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
B0152015 - ROTOR CPL Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/6/img/70656.jpg)
10 |
VIS BTR (6X24) ORIGINE PIAGGIO COMMUN A LA GAMME -877289 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/9/img/66579.jpg)
11 |
RONDELLE GROWER (6) ORIGINE PIAGGIO COMMUN A LA GAMME -479515 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
12 |
CLAVETTE ALLUMAGE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -000097 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/5/3/img/149153.jpg)
13 |
ROUE LIBRE DE DEMARREUR (6 TROUS) ORIGINE PIAGGIO 300-350-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 400 X8,X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO -1A0093875 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 2 |
