Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

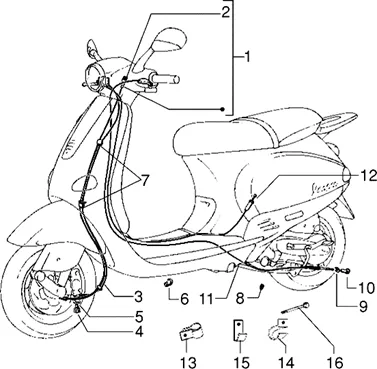

Transmisisons : T42 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T42.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/7/2/img/79772.jpg)
1 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 50 ET2 1998 > 2004, 125 ET4 1998 > 2004-56116R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/0/4/img/79804.jpg)
2 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 VESPA ET2, 125 VESPA ET4, 125-250 HEXAGON -561806- More informationQuantity required : 1 |
||||||
3 |
563886-CANALISATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
4 |
SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
5 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 1 |
||||||
|
6 |
268172-ATTACHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
7 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
|
8 |
PLAQUETTE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
9 |
PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
10 |
NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/6/9/img/89969.jpg)
11 |
CABLE/CONTROL/TRANSMISSION OF BRAKE REAR OEM PIAGGIO 50 VESPA LX 5005 >, VESPA-S 2005 >, ET2 1998 > 2004, SFERA 1998 > 2004/GILERA 50 RUNNER 1998 > 2004-665912 More informationQuantity required : 1 |
||||||
|
12 |
THROTTLE TRANSMISSION CABLE "PIAGGIO GENUINE PART" 125 LIBERTY, SFERA, ET4 1998>2005 -561804- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/1/img/66101.jpg)
13 |
CLAMP FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-271477 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/7/img/69377.jpg)
14 |
CLAMP MOUNTING WIRING OU HOSE OUVERT OEM PIAGGIO COMMON A LA RANGE-845978 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/0/img/66610.jpg)
15 |
CLAMP SHEET METAL DE MAINTIEN OEM PIAGGIO COMMON A LA RANGE-1C006656 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
16 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
||||||
|
16 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 2 |
