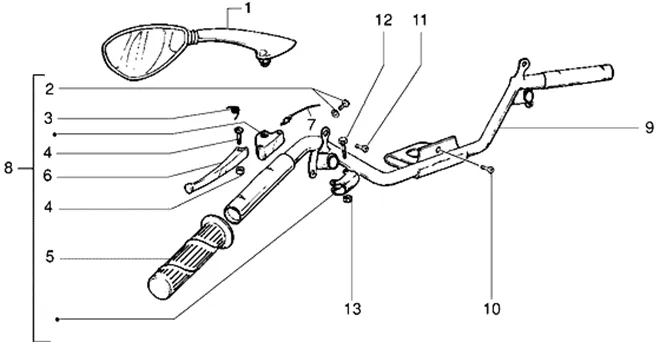

Guidon : T40 PIECES COMPOSANT LE GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T40.PNG)
1 |
MIRROR- LEFT "PIAGGIO GENUINE PART" VESPA 125 ET4 -563866- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
1 |
SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/8/img/65718.jpg)
2 |
SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/6/9/4/img/79694.jpg)
2 |
BRAKE MASTER CYLINDER RIGHT OEM PIAGGIO 50-125 LIBERTY PTT 2005 </VESPA VINTAGE ET2, ET4-56008R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/7/img/66067.jpg)
3 |
SPRING DE BRAKE LEVER LEFT OEM PIAGGIO COMMON A LA RANGE WITH BRAKE TAMBOUR-267948 More informationQuantity required : 1 |
||||||
|
3 |
494948 - LEVIER FREIN AV ET4 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/8/img/66048.jpg)
4 |
SCREW WITH NUT BRAKE LEVER OEM PIAGGIO COMMON A LA RANGE-265249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/8/img/66998.jpg)
4 |
GRIP REVETEMENT LEFT OEM PIAGGIO COMMON A LA RANGE 2008 <-560582 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/9/7/img/66997.jpg)
5 |
GRIP REVETEMENT LEFT OEM PIAGGIO COMMON A LA RANGE-560580 More informationQuantity required : 1 |
||||||
|
5 |
THROTTLE CABLE KIT "PIAGGIO GENUINE PARTS" LIBERTY 125 1999>2000 / VESPA 125 ET4 -CM065903- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/0/3/img/80103.jpg)
6 |
LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" 50-125 LIBERTY 1998>2005, 50 ET2, 125 ET4 1998>2004 -564642- More informationQuantity required : 1 |
||||||
|
6 |
MANCHON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
7 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/8/img/66078.jpg)
7 |
TENDEUR/SCREW OF REGLAGE CABLE (6X16) OEM PIAGGIO COMMON A LA RANGE-269145 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/1/0/2/img/80102.jpg)
8 |
GRIP/SLEEVE LEFT COMPLETE OEM PIAGGIO 50-125 LIBERTY 1998 > 2005, 50 VESPA ET2, 125 VESPA ET4 1998 > 2005-564641 More informationQuantity required : 1 |
||||||
|
8 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
|
9 |
5817165 - GUIDON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
10 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 1 |
||||||
|
10 |
123390-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
11 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/6/img/65606.jpg)
12 |
SCREW TH (5X33) OEM PIAGGIO COMMON A LA RANGE-030039 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
12 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 1 |
||||||
|
13 |
440785 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
13 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-015330 More informationQuantity required : 1 |
||||||
|
14 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" VESPA 125 ET4 -563865 More informationQuantity required : 1 |
||||||
|
15 |
128009-CAPSULE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
16 |
WASHER PLATE (10. 3X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-178790 More informationQuantity required : 1 |
