Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

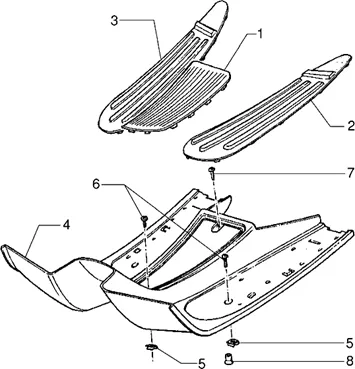

Châssis : T28 REPOSE-PIEDS - TAPIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T28.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/2/0/img/80220.jpg)
1 |
MAT MILIEU DE STEP FOOT OEM PIAGGIO 50-125 VESPA LX, VESPA-S-57345R More informationQuantity required : 1 |
||||||
2 |
299236 - KIT TAPIS More informationQuantity required : 1 |
||||||
|
3 |
299236 - KIT TAPIS More informationQuantity required : 1 |
||||||
|
4 |
PEDANA ** |
||||||
|
4 |
573000000D - MARCHE PIED ET2/4 50 GRIS More informationQuantity required : 1 |
||||||
|
4 |
MARCHE PIED ET2/4 50 BLEU 216 |
||||||
|
4 |
5730000090-STEP FOOT ET2/4 50 BLACK 94 More informationQuantity required : 1 |
||||||
|
4 |
57300000D1 - MARCHE PIED ET2/4 50 BLEU 251 More informationQuantity required : 1 |
||||||
|
4 |
8213005059 - REPOSE PIED MAR 131 More informationQuantity required : 1 |
||||||
|
4 |
8213005060-STEP FOOT 336 More informationQuantity required : 1 |
||||||
|
4 |
8213005066-STEP FOOT 913 More informationQuantity required : 1 |
||||||
|
4 |
8213005087 - TAPIS 724 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/5/4/6/img/92546.jpg)
4 |
STEP FOOT/PLANCHER OEM PIAGGIO 125 VESPA ET4 1998 > BLACK-8213005090 More informationQuantity required : 1 |
||||||
|
4 |
8213005095 - MARCHE PIED More informationQuantity required : 1 |
||||||
|
4 |
82130050B2 - REPOSE PIED 693 More informationQuantity required : 1 |
||||||
|
4 |
82130050D1 - MARCHE PIED 251 More informationQuantity required : 1 |
||||||
|
4 |
MARCHE PIED 523 |
||||||
|
4 |
8213195 - TAPIS CENTRAL V 331 More informationQuantity required : 1 |
||||||
|
4 |
8213205 - MARCHE PIED 848 More informationQuantity required : 1 |
||||||
|
4 |
FOOTREST "PIAGGIO GENUINE PART" PIAGGIO 125 ET4 BLUE 216 -8213225- More informationQuantity required : 1 |
||||||
|
4 |
8213005-PARTIE CENTRE UNPAINTED More informationQuantity required : 1 |
||||||
|
4 |
PARTIE CENTRALE 949 |
||||||
|
4 |
TAPIS CENTRAL 734 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
6 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
7 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
8 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 1 |
