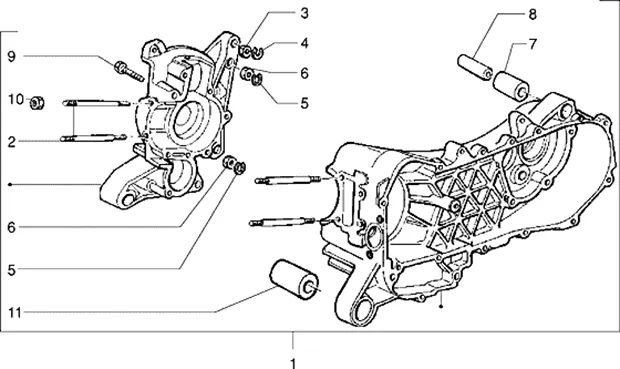

Vehicle Exploded View - VESPA VESPA ET4 125 1998-2005 VESPA

Moteur : T2 CARTER
Carter
Search
8253595 - CARTER

1
P2R reference P2R reference 92686
Maker reference Maker reference 8253595

8253595 - CARTER

More information

Quantity required : 1

1
P2R reference P2R reference
Maker reference Maker reference 8253695

GOUJON

2
P2R reference P2R reference
Maker reference Maker reference 436249

GOUJON

020006 - ECROU

3
P2R reference P2R reference 65453
Maker reference Maker reference 0200065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020006

More information

Quantity required : 1

WASHER BRAKE (M6) OEM PIAGGIO COMMON A LA RANGE-287223

4
P2R reference P2R reference 66181
Maker reference Maker reference 287223

WASHER BRAKE (M6) OEM PIAGGIO COMMON A LA RANGE-287223

More information

Quantity required : 1

WASHER ARRET OEM PIAGGIO COMMON A LA RANGE-113533

5
P2R reference P2R reference 65698
Maker reference Maker reference 113533

WASHER ARRET OEM PIAGGIO COMMON A LA RANGE-113533

More information

Quantity required : 2

NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008

6
P2R reference P2R reference 65455
Maker reference Maker reference 0200085

NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008

More information

Quantity required : 2

RUBBER MOUNT SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-267823

7
P2R reference P2R reference 66066
Maker reference Maker reference 267823

RUBBER MOUNT SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-267823

More information

Quantity required : 1

SPACER DE RUBBER MOUNT D'AMORTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-266625

8
P2R reference P2R reference 66054
Maker reference Maker reference 266625

SPACER DE RUBBER MOUNT D'AMORTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-266625

More information

Quantity required : 1

SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425

9
P2R reference P2R reference 72705
Maker reference Maker reference B016425

SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425

More information

Quantity required : 8

434078 - ECROU

10
P2R reference P2R reference 66444
Maker reference Maker reference 434078

434078 - ECROU

More information

Quantity required : 4

RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081

11
P2R reference P2R reference 66704
Maker reference Maker reference 486081

RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081

More information

Quantity required : 2
