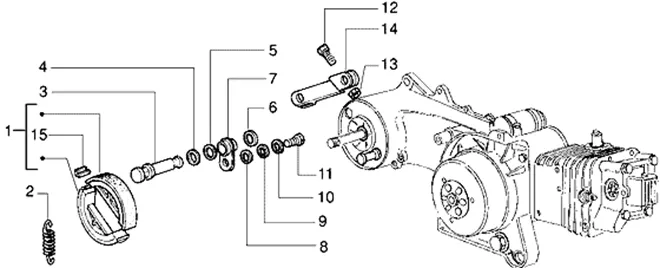

Moteur : T21 LEVIER DU FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/4/img/68814.jpg)
1 |
BRAKE SHOE SET REAR OEM PIAGGIO 50 ZIP 2T AR, 50-125 VESPA LX AR, TYPHOON, NRG, LYBERTY/GILERA 50 STALKER, RUNNER (D. 105)-82907R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/1/7/img/68017.jpg)
2 |
SPRING BRAKE SHOE SET OEM PIAGGIO COMMON A LA RANGE SCOOTER 50-125-647384 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/4/6/img/72646.jpg)
3 |
CAME OF BRAKE REAR OEM PIAGGIO 50 ZIP, TYPHOON, NRG, LIBERTY, FLY, VESPA LX, VESPA-S/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD-B014502 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/2/img/63832.jpg)
4 |
O RING OF BRAKE ARRIEREORIGINE PIAGGIO 125 PX VESPA-006714 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/2/img/66132.jpg)
5 |
WASHER (12X22X1) OEM PIAGGIO COMMON A LA RANGE-274246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/4/img/66124.jpg)
6 |
GASKET CAME OF BRAKE REAR OEM PIAGGIO 50 COMMON A LA RANGE-273419 More informationQuantity required : 1 |
||||||
7 |
274249 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/4/img/63844.jpg)
8 |
WASHER SPRING OEM PIAGGIO COMMON A LA RANGE-007608 More informationQuantity required : 2 |
||||||
|
9 |
179574-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/3/img/65793.jpg)
10 |
WASHER PLATE (6. 5X18. 4) OEM PIAGGIO COMMON A LA RANGE-179575 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
11 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
12 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
12 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/0/img/68490.jpg)
13 |
709041 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/0/img/69060.jpg)
14 |
LEVER DE CONTROL OF BRAKE REAR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-833428 More informationQuantity required : 1 |
||||||
|
15 |
266724-PLATE More informationQuantity required : 2 |
